Deflection gear 3039
Description

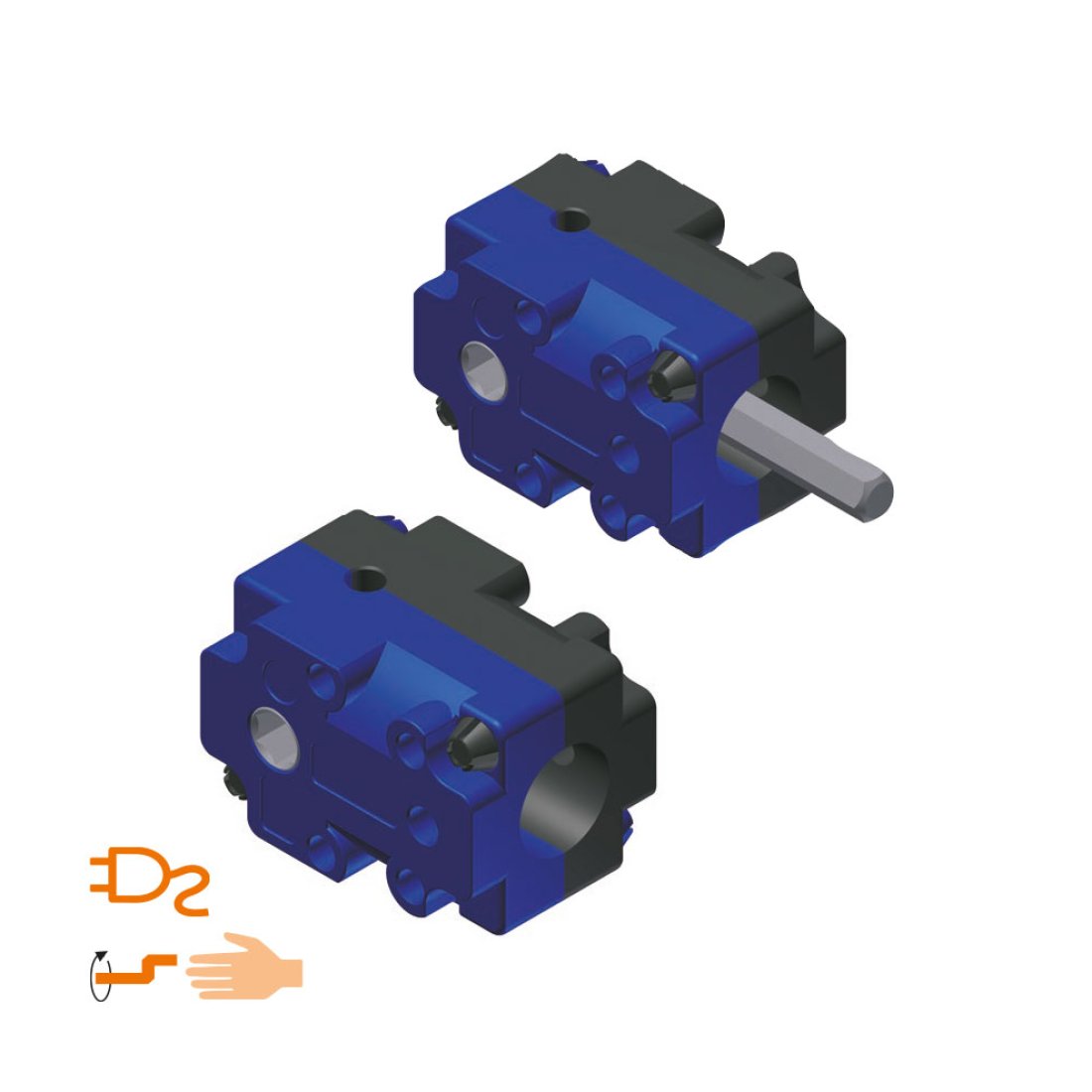

Bevel gearbox for the deflection of a rotary movement at an angle of 90°. The gearbox can be supplied both with a hexagonal axle with a specific length or without an axle. Simple mounting is made possible by a flexible screw fixing.
Special features
- Maintenance-free
- Case-hardened steel bevel wheels
- Syntetic gear housing
- Ratio 1:1
- Suitable for both manual and electric motor drives
| Model | 3039.00-0001 | 3039.00-V03AXXX |
| Ratio | 1:1 | 1:1 |
| Input/Output | hex 6 mm | hex 6 mm |
| Number of bevel wheels | 2 | 2 |
| Max. drive torque | 4 Nm | 4 Nm |
| Length A | - | Customer specific |
| Housing | Synthetic | Synthetic |
