Lift smart, work smart

Electric box lifter KET-LIFT4BOX for KLT containers, blisters, and other industrial containers

The KET-LIFT4BOX is a compact, powerful, and user-friendly solution for efficiently lifting crates and boxes in warehouses, workshops, and production facilities. It is suitable for heavy loads up to approx. 120 kg in demanding environments and contributes to employee relief and shortened reach distances thanks to its automatic electric lifting function.

Efficient, ergonomic box lifting for optimized workflows

The crate lifting device is designed for front-loading capacities of up to 120 kg and enables ergonomic working through stepless electric container positioning. Positioning can be controlled manually via buttons on the column or in automatic mode with light barriers. Additionally, working heights can be adjusted individually to meet the user's needs.

The device's high stability is ensured by a massive base plate that can be secured to the ground if necessary. For mobile use, the KET-LIFT4BOX features transport rollers and secure handles that facilitate transport and handling.

Furthermore, the KET-LIFT4BOX is characterized by its maintenance-free design, allowing users to focus on their work without worrying about regular maintenance, thus increasing productivity.

Automatic operation - Precise lifting and lowering with light barriers

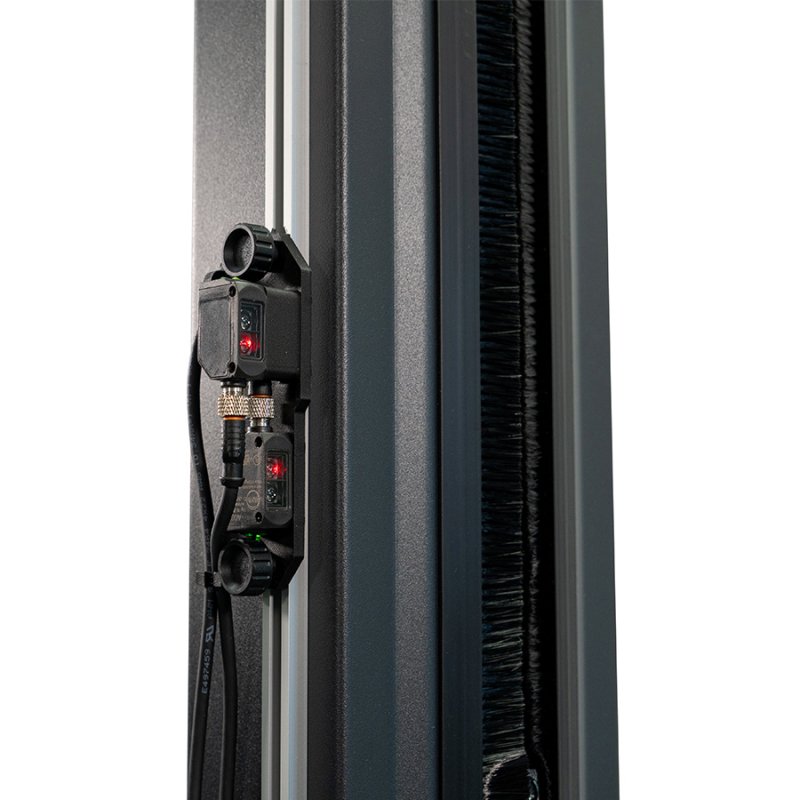

In automatic mode, KET-LIFT4BOX takes over the lifting and lowering of loads fully automatically, making everyday work easier. The working position can be adjusted effortlessly and without tools using light barriers. As soon as a box is removed from the stack, the KET-LIFT4BOX skillfully raises the next box exactly to the previous level, ensuring a continuous working surface. On the other hand, when a crate is added to the stack, the KET-LIFT4BOX lowers it precisely to the previously set level, enabling optimized material provision.

Technical details

Maximum load capacity: approx. 120 kg
Adjustment speed: 20 mm/s
Dimensions: 560 x 640 x 1,125 mm
Working height: 115 to 1,100 mm, other heights available upon request
Total adjustment height: 995 mm
Own weight: approx. 55 kg
Operation: via push button on the column or in automatic mode

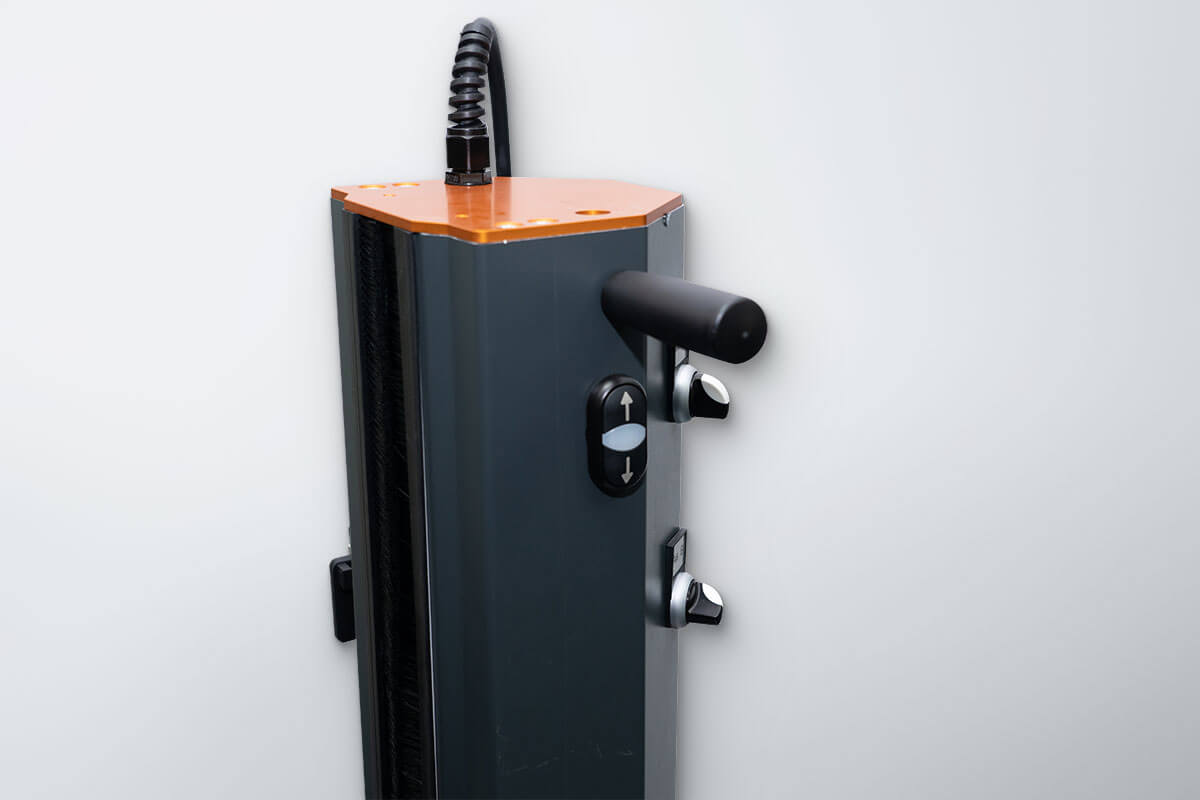

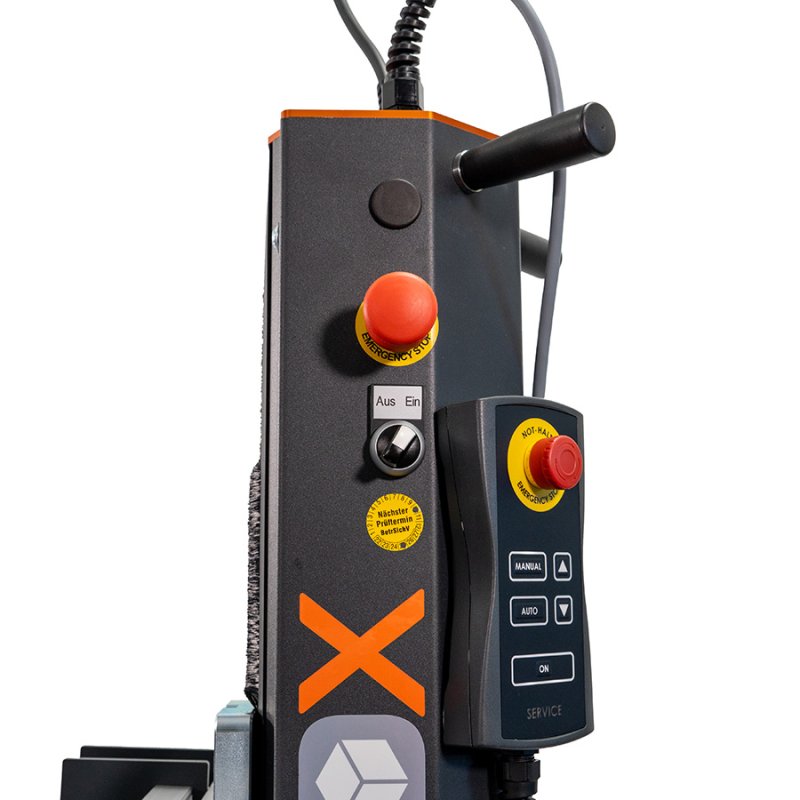

Handlebars and switches

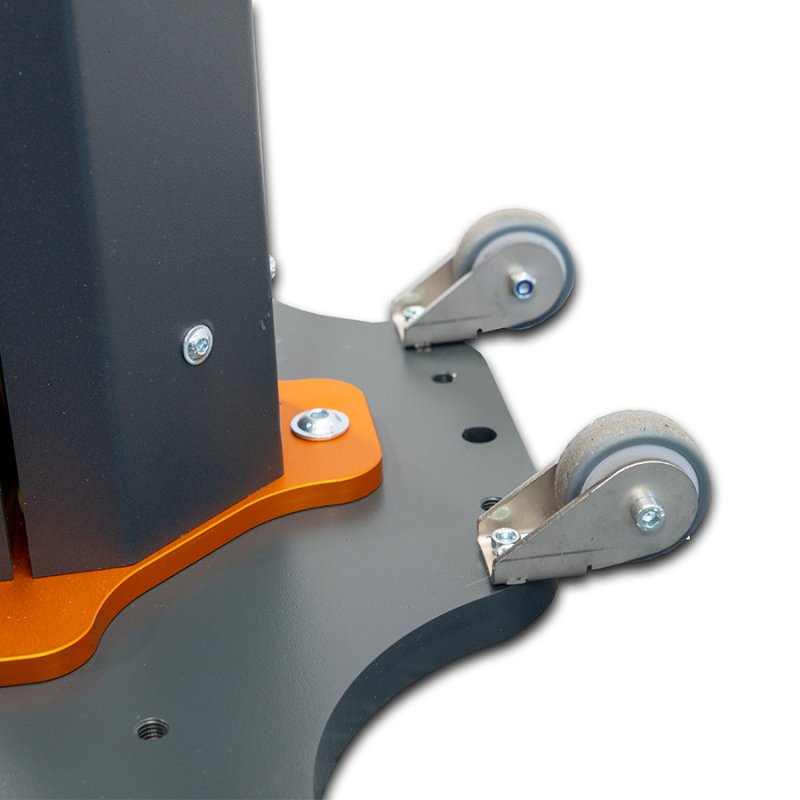

Transport rollers

Crate holder
