t-Rex 3206 I-65-86-L36 S2 (long version, focus torque)

Description

14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. The design of the motor with a hollow shaft allows the cables to run through the motor or output on both sides.

Special features

  • Designed with focus on max. torque
  • Enormous performance density – 3 times stronger than motors of comparable size
  • High overload resistance
  • Ideally suited as direct drive, or generator for gearless applications
  • Special winding upon request
  • Design and manufacture of motor to specified operating point is possible

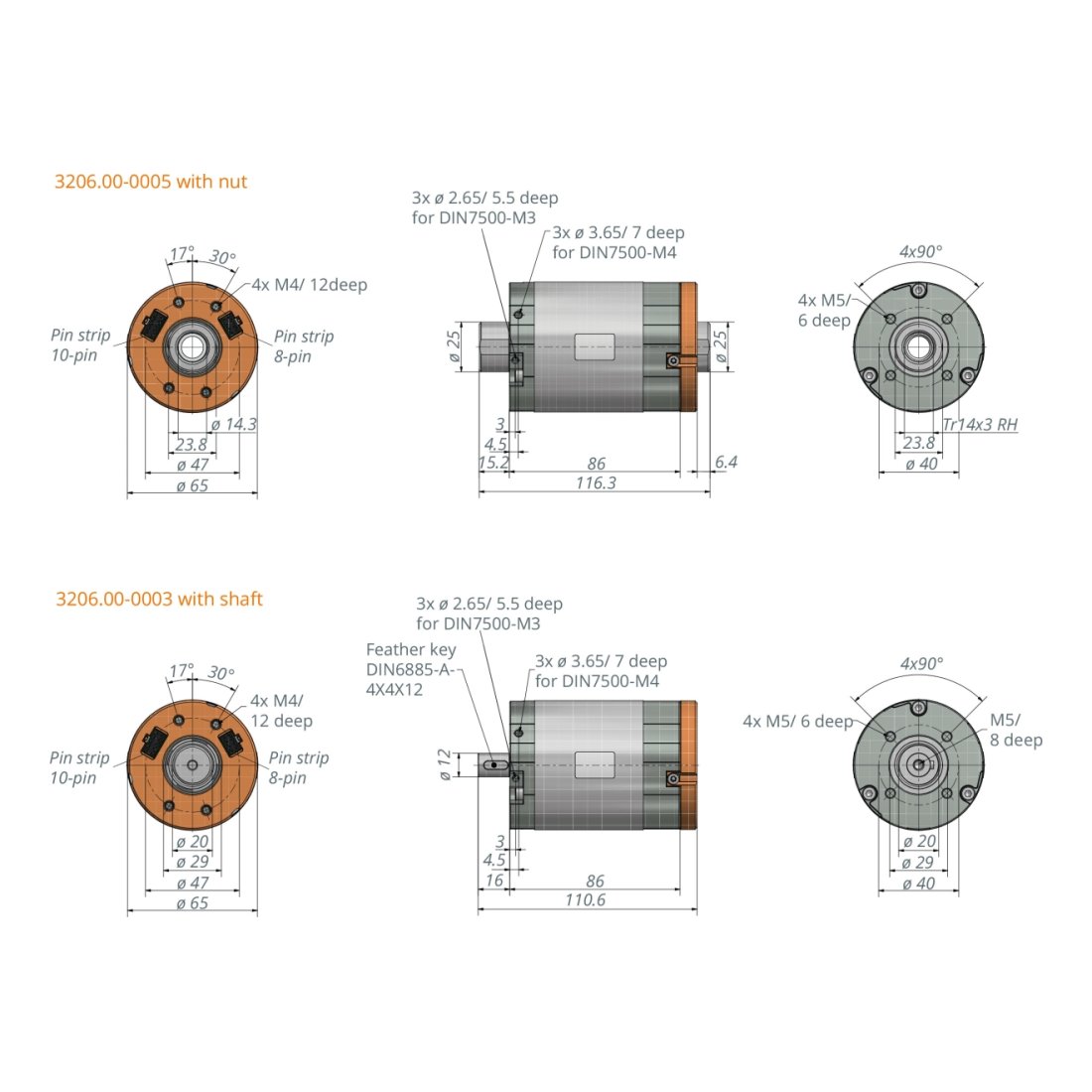

t-Rex 3206 I-65-86 L36 S2 DH 3206.00-0005/ 3206.00-0003
Rated voltage 24 VDC 36 VDC 48 VDC
Rated current 5.4 A 5.6 A 5.6 A
Rated torque 1.9 Nm 1.9 Nm 1.9 Nm
Rated speed 535 rpm 865 rpm 1185 rpm
Shaft power (output) 106 W 167 W 232 W
Max. efficiency 84 % 82 % 83 %
Idle speed 702 rpm 1052 rpm 1390 rpm
No-load current 0.45 A 0.43 A 0.43 A
Stall torque 8 Nm 9 Nm 9 Nm
Starting current at idle speed 27 A 28 A 26.5 A
Torque constant 0.308 Nm/A 0.330 Nm/A 0.343 Nm/A
Speed constant 29 rpm/V 29 rpm/V 29 rpm/V



Motor parameters
Terminal resistance (phase to phase) 121 Ohm
Terminal inductance (phase to phase) 0.9 mH
Rotor inertia 104 kg* mm²
Number of poles 14
Interconnection of the motor Star
Number of coils per phase 2
Interconnection of coils 2 Series
Direction of rotation bidirectional
