t-Rex 3200 I-44-89-L41 S2 (long version, focus torque)
Description
14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. The design of the motor with a hollow shaft allows the cables to run through the motor or output on both sides.
Special features
- Designed with focus on max. torque
- Enormous performance density – 3 times stronger than motors of comparable size
- High overload resistance
- Ideally suited as direct drive, or generator for gearless applications
- Special winding upon request
- Design and manufacture of motor to specified operating point is possible

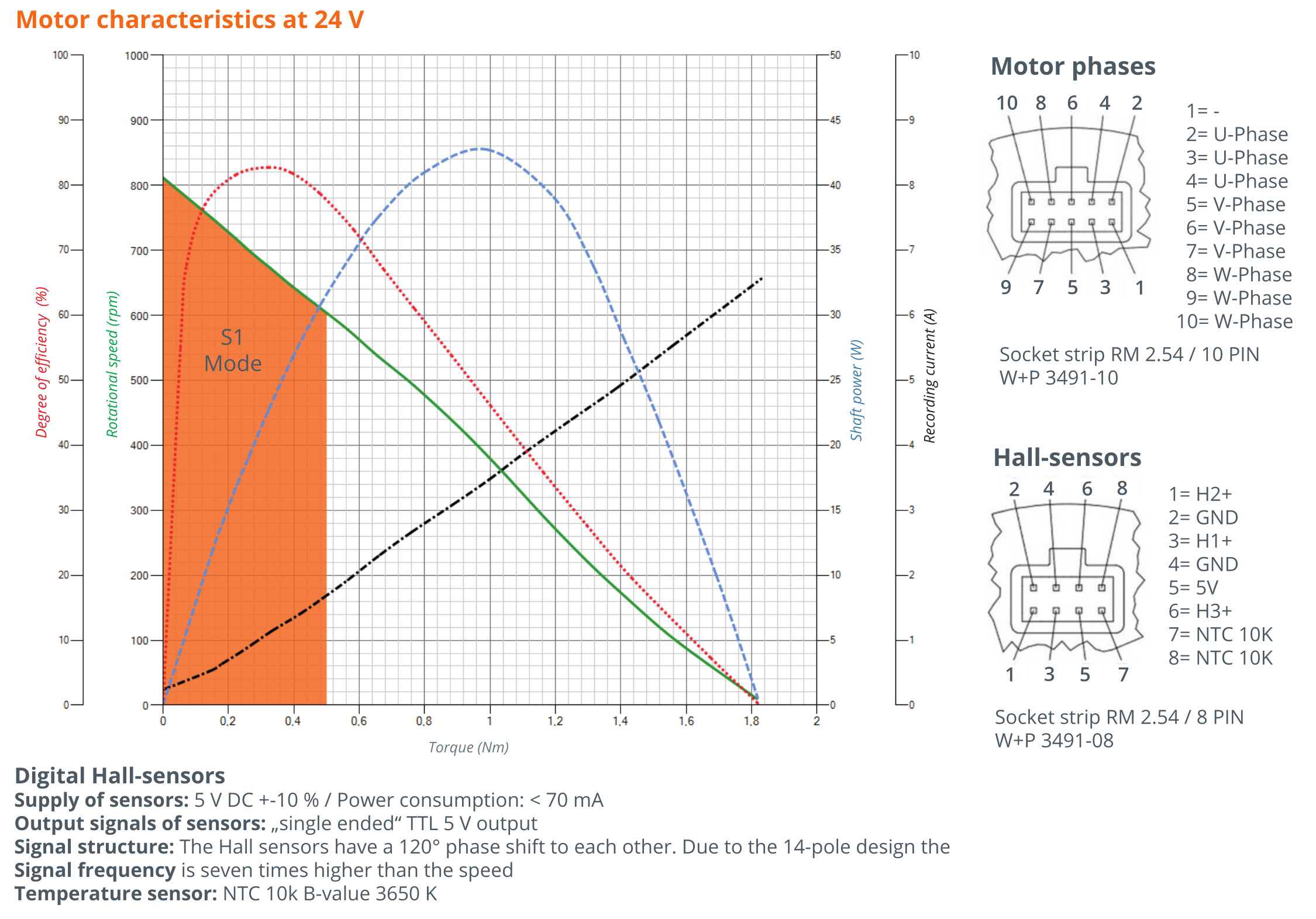

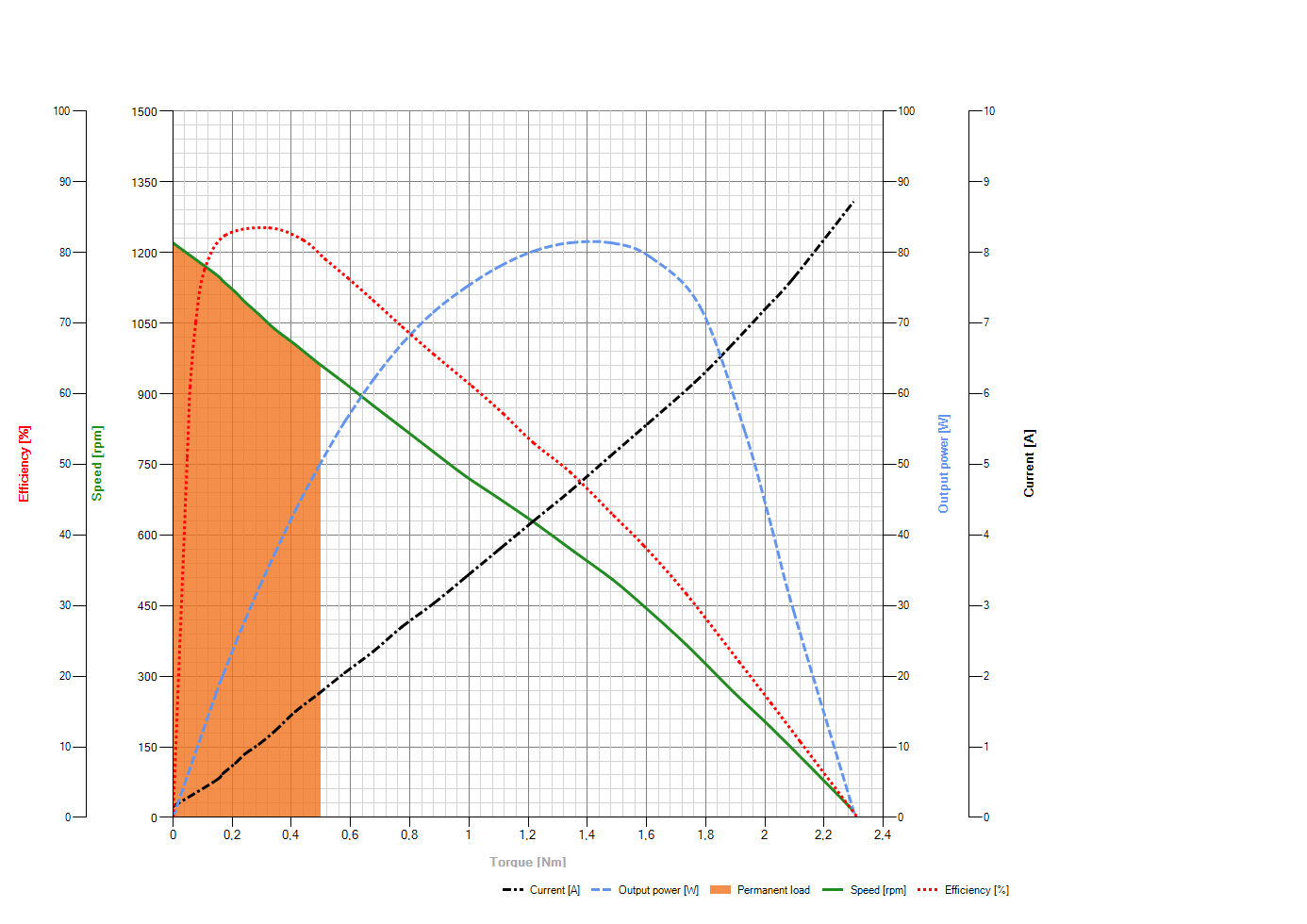

t-Rex 3200 I-44-89 L41 S2 DH | 3200.00-0005 / 3200.00-0006 | ||
Rated voltage | 24 VDC | 36 VDC | 48 VDC |
Rated current | 1.7 A | 1.8 A | 1.7 A |
Rated torque | 0.5 Nm | 0.5 Nm | 0.5 Nm |
Rated speed | 600 rpm | 960 rpm | 1347 rpm |
Shaft power (output) | 31 W | 50 W | 70 W |
Max. efficiency | 83 % | 83 % | 83 % |
Idle speed | 812 rpm | 1221 rpm | 1653 rpm |
No-load current | 0.3 A | 0.2 A | 0.2 A |
Stall torque | 1.8 Nm | 2.3 Nm | 2.9 Nm |
Starting current at idle speed | 6.6 A | 8.7 A | 11.2 A |
Torque constant | 0.279 Nm/A | 0.264 Nm/A | 0.261 Nm/A |
Speed constant | 34 rpm/V | 34 rpm/V | 34 rpm/V |
Motor parameters | |
Terminal resistance (phase to phase) | 2,6 Ohm |
Terminal inductance (phase to phase) | 1.6 mH |
Rotor inertia | 26.5 kg* mm² |
Number of poles | 14 |
Interconnection of the motor | Star |
Number of coils per phase | 2 |
Interconnection of coils | 2 Series |
Direction of rotation | bidirectional |
