Electric spindle drive 4640
Description

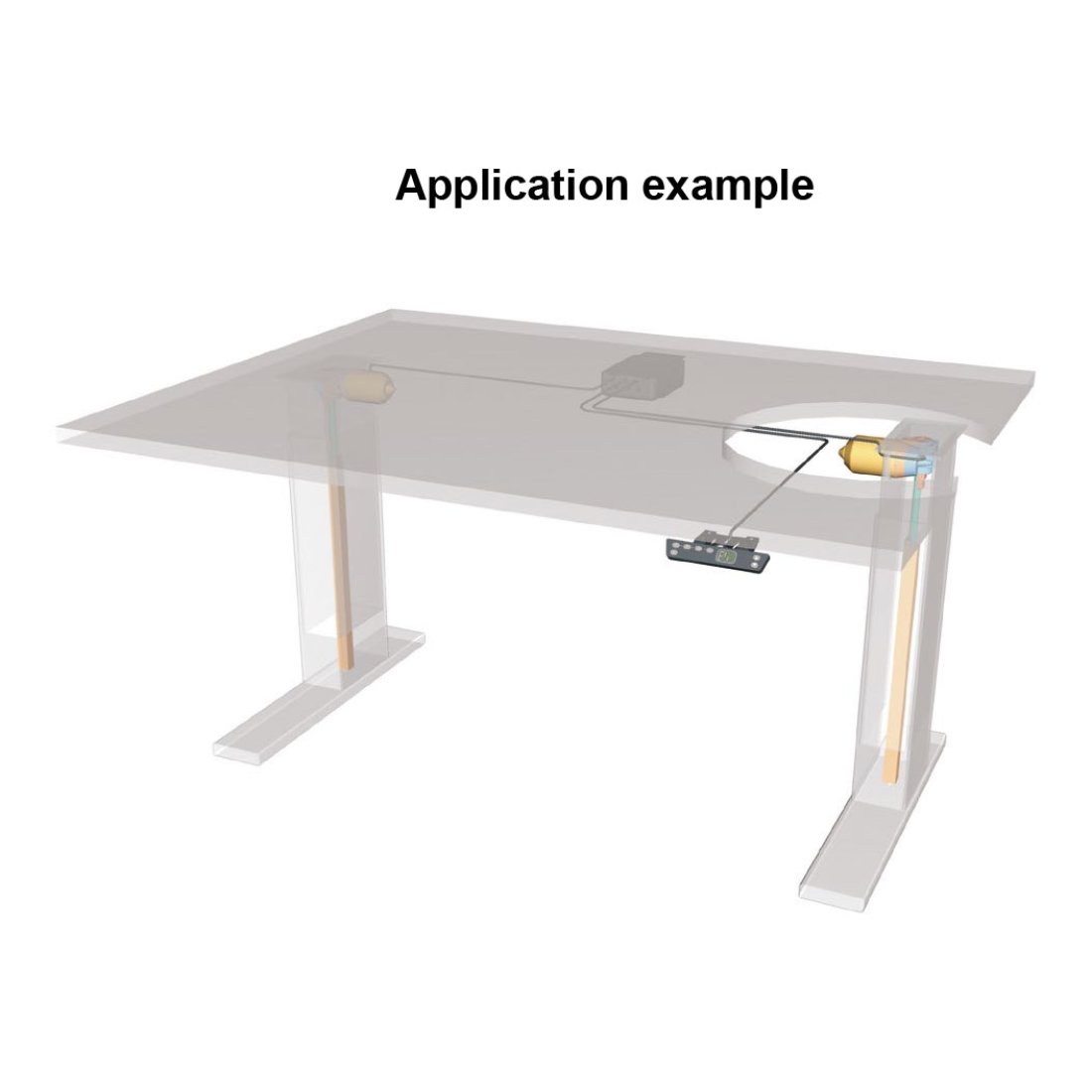

The electric spindle drive 4640 is a motorized solution for the sit-stand workplace. The spindle drive enables stepless height adjustment to customer specific travel distance.
Special features
The electric spindle drive is characterized by a simple mounting and an integrated distance of travel output. The spindle drive has a single telescopic function. Synchronization with up to 26 actuators is possible.
Customer specific
As a result of the electric spindle drive’s modular structure, special customer requirements can be met. The spindle drive can be supplied with different spindle lengths and different spindle pitches.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
| Model | 4640.00-V01EXXXHXXX |
| Motor | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0.3 A |
| Protection class | IP30 |
| Duty cycle | 20% (at 5 min.) |
| Idle running speed | 100 rpm (24 V) 150 rpm * |
| Stroke max. | retracted length -109 mm |
| Type of spindle | SG14x16P4 RH ** |
| Max. lifting force | 800 N |
| Max. drive torque | 5 Nm |
| Movement speed | 40 mm/s * |
* in combination with LogicData control box Compact-3
** further type of spindles on request
