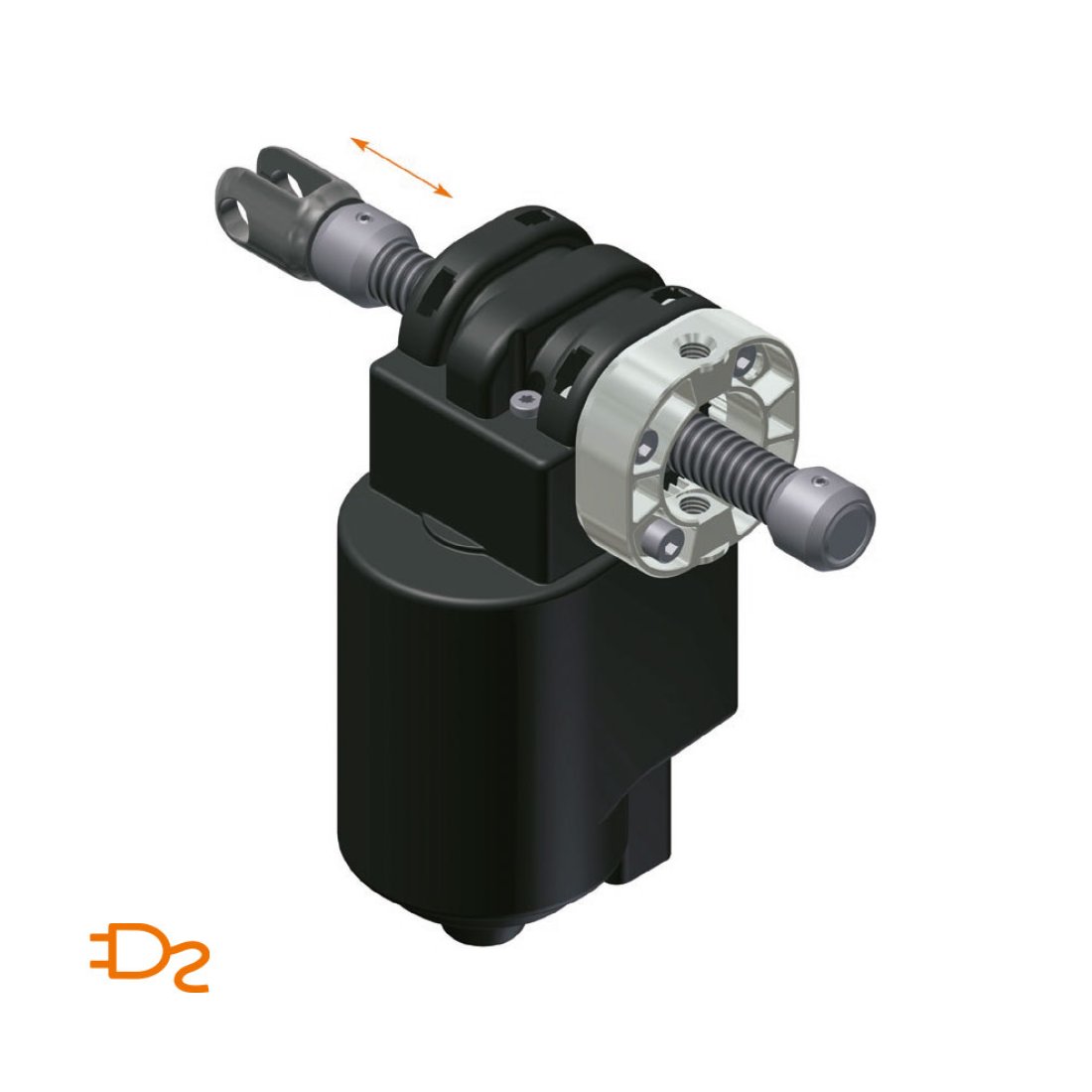

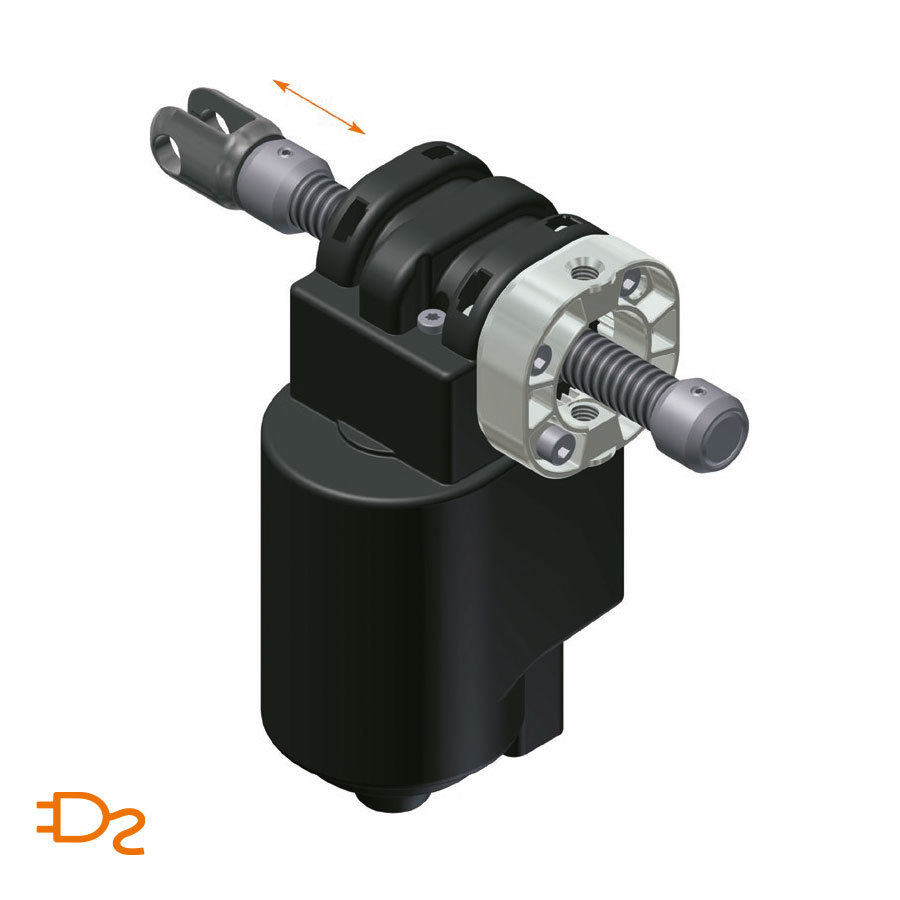

Electric drive with throughgoing spindle 4643
Description
Powerful motorized drive unit with push-pull spindle and electromechanical end-switches. Stroke to customer demands.
Special features
By simplified control function, an additional distance measuring system is not required.
- Very powerful
- For very high holding torques
- Simple installation
- Two electromechanical end-switches.
Customer specific
Compact actuator for customer specific applications. Can be adapted easily by fork crown and mounting adapter flange.
Safety information
See technical data sheet.
| Model | 4643.00-V01HXXXX |
| Motor | DC Motor 18 V |
| Sensor/Power supply | Hall/5 V DC/0.3 A |
| Protection class | IP30 |
| Duty cycle | 20% (at 5 min.) |
| Type of spindle | Tr14x3 RH |
| Max. pressure force | 3000 N |
| Movement speed | 4 mm/s * |
* in combination with LogicData control box Compact-3
