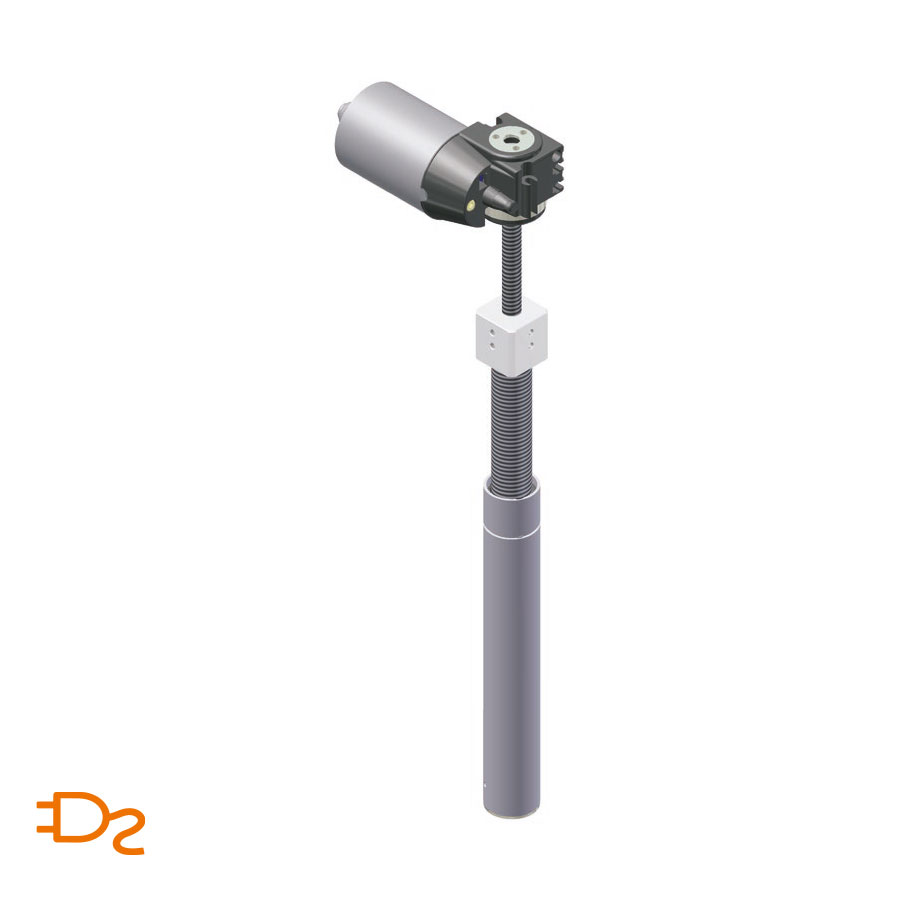

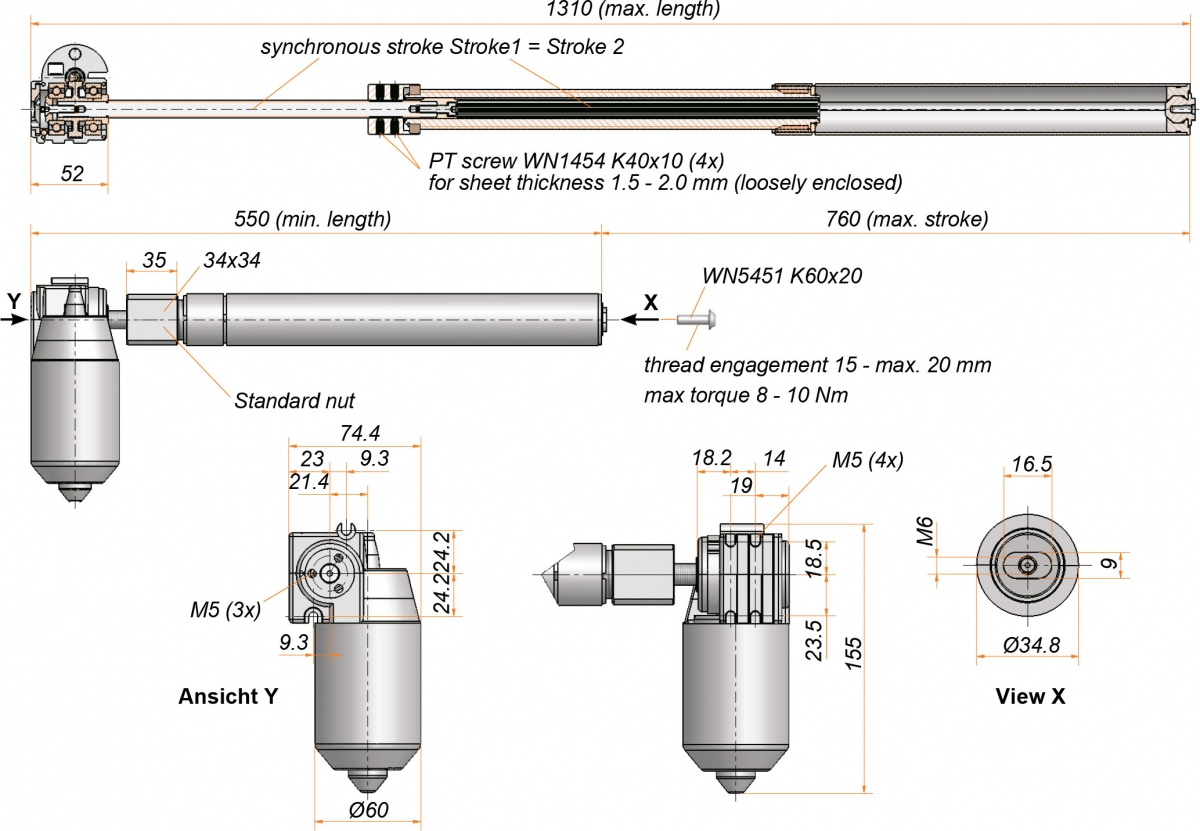

Electric drive with synchronous telescopic spindle 4114
Description
Electric motor solution for the individual sit-stand workplace. Smooth running stepless height adjustment.
Special features
Simple mounting, integrated position measuring system, twice telescopable. Electronic synchronisation with up to 24 actuators. Synchronous movement of the spindle units,
double stroke speed.
Customer specific
Because of the modular design it is possible to meet special customer requirements even for small quantities.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
| Model | 4114 |
| Motor | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0.3 A |
| Protection class | IP30 |
| Duty cycle | 20% (at 5 min.) |
| Idle running speed | 100 rpm (24 V) 150 rpm * |
| Stroke max. | (retracted length -170 mm) x2 |
| Typ of spindle | SG25x12P6 RH ** SG12x12P4 RH |
| Max. lifting force | 800 N |
| Max. drive torque | 5 Nm |
| Movement speed | 50 mm/s * |
* in combination with LogicData control box Compact-3
** further type of spindles on request
