Angular gear Ket-Bee 200X T-Gearbox
3x shaft in synchronization/counter-rotation
Description
A bevel gearbox family with through shaft consisting of 10 sizes for versatile use as an angular gearbox. The gearbox is characterised by a compact design with maximum torque, sturdiness and smooth power transmission. The uncomplicated mounting is made possible by a simple screw fixing.
Besondere Merkmale
- Maintenance-free and silent running
- Steel bevel wheels, case-hardened
- Aluminium housing, anodized
- Ratio 1:1
- Permitted operating temp. -20°C to +60°C
- Backlash at drive shaft 3° ± 1°
- Duty cycle 20 % at 5 min (1 min ON, 4 min OFF)
- Lifetime of 1000 hours with: - full load and
- input speed of 500 rpm and
- duty cycle 20% with 5 min
| Item.-Nr. | Shop | Synchronization A Counter-rotation B | Speed n in rpm | Max. torque M* in Nm | Radial and axial load** FR in N / FN in N |
Part weight in kg |
| 2000.00-T0A04R1 |  | Synchronization | 100/500/1000 | 0.28/0.08/0.04 | 48 | 0.03 |
| 2001.00-T0A06R1 | | Synchronization | 100/500/1000 | 0.35/0.1/0.05 | 60 | 0.06 |
| 2002.00-T0A06R1 | | Synchronization | 100/500/1000 | 0.75/0.3/0.15 | 100 | 0.07 |
| 2003.00-T0A08R1 | | Synchronization | 100/500/1000 | 2.5/1/0.5 | 120 | 0.13 |
| 2004.00-T0A08R1 | | Synchronization | 100/500/1000 | 4/1.5/0.75 | 140 | 0.17 |
| 2005.00-T0A08R1 | | Synchronization | 100/500/1000 | 5/2/1 | 240 | 0.19 |
| 2006.00-T0A10R1 2006.00-T0B10R1 | | Synchronization Counter-rotation |
100/500/1000 | 8/3/1.5 | 550 | 0.24 |
| 2007.00-T0A12R1 2007.00-T0B12R1 | | Synchronization Counter-rotation |
100/500/1000 | 10/4/2 | 550 | 0.40 |
| 2008.00-T0A12R1 2008.00-T0B12R1 | | Synchronization Counter-rotation |
100/500/1000 | 12/5/2,5 | 600 | 0.59 |
| 2009.00-T0A12R1
2009.00-T0B12R1 | | Synchronization Counter-rotation |
100/500/1000 | 14/6/3 | 750 | 0.80 |
* Attention: With 200X.00-TXB variants, the drive torque is distributed over 2 axes
** The values of FR apply only when FA = 0 N
The values of FA apply only when FR = 0 N

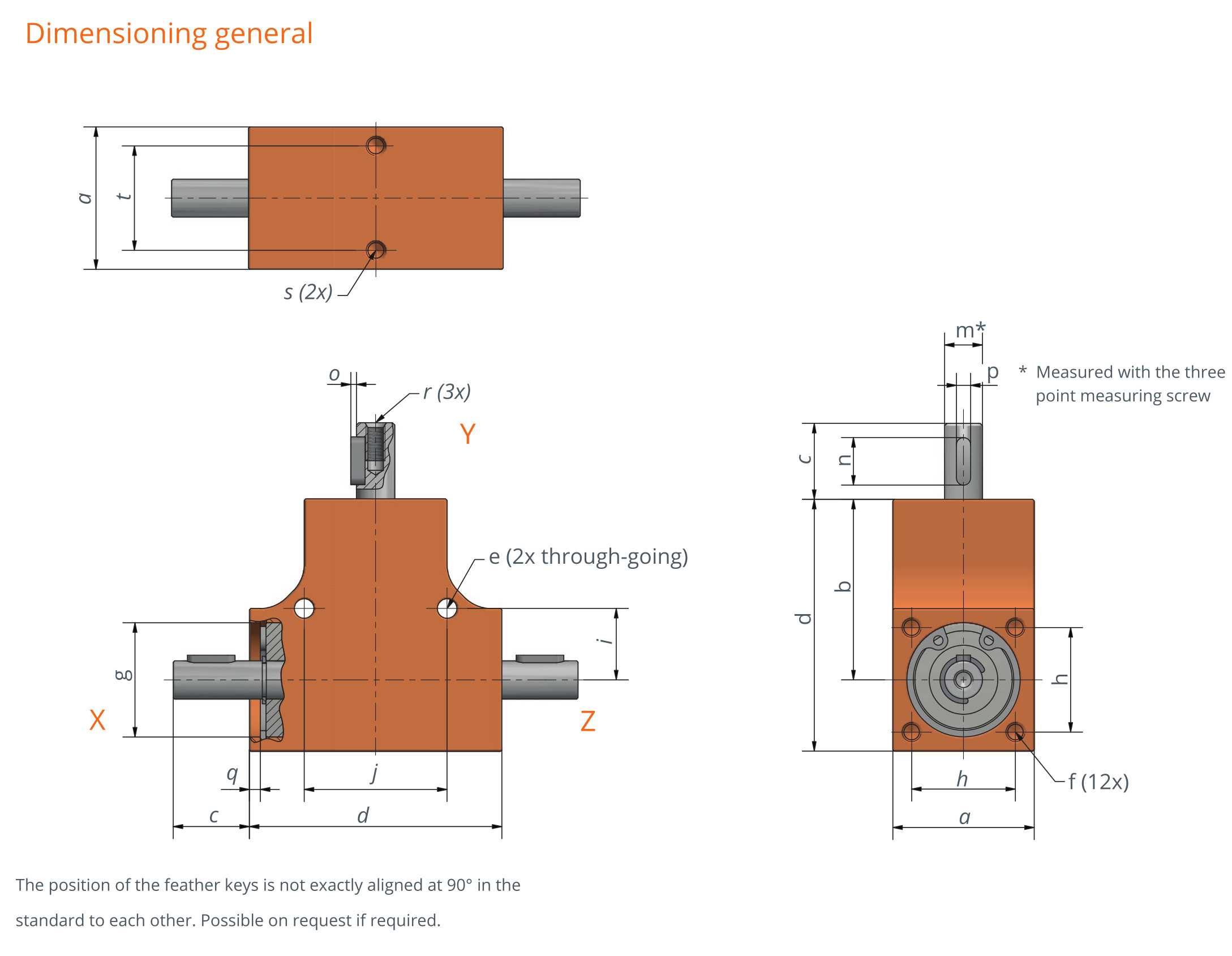

| Gearbox-type | Dimensions in mm | ||||||||||||||||||
| a | b | d | e | f | g | h | i | j | q | s | t | u | |||||||
| 2000 | 15 | 18.5 | 26 | ø2.6 | M2,5x5 | ø11 | 11 | 8 | 16 | 1.1 | M2,5x4 | 11 | 9 | ||||||
| 2001 | 18 | 23 | 32 | ø3.1 | M3x10 | ø13 | 13 | 8,5 | 17 | 3.1 | M3x4 | 13 | 11 | ||||||
| 2002 | 20 | 25 | 35 | ø3.1 | M3x10 | ø16 | 15 | 10 | 20 | 2.25 | M3x6 | 15 | 10 | ||||||
| 2003 | 24 | 30 | 42 | ø4.1 | M4x10 | ø19 | 18 | 12 | 24 | 2 | M4x6 | 18 | 16 | ||||||
| 2004 | 26 | 33 | 46 | ø4.1 | M4x10 | ø22 | 20 | 13 | 26 | 2 | M4x8 | 20 | 16 | ||||||
| 2005 | 30 | 38 | 53 | ø4.1 | M4x10 | ø24 | 22 | 15 | 30 | 2.3 | M4x8 | 22 | 16 | ||||||
| 2006 | 32 | 40 | 56 | ø4.1 | M4x10 | ø28 | 24 | 17 | 34 | 2.8 | M4x8 | 24 | 16 | ||||||
| 2007 | 35 | 42.5 | 60 | ø4.1 | M4x10 | ø30 | 26 | 17.5 | 35 | 3.2 | M4x8 | 26 | 16 | ||||||
| 2008 | 40 | 48 | 68 | ø5.1 | M5x10 | ø32 | 30 | 20 | 40 | 3.5 | M5x10 | 30 | 20 | ||||||
| 2009 | 45 | 54.5 | 77 | ø5.1 | M5x10 | ø37 | 35 | 22.5 | 45 | 5 | M5x10 | 35 | 20 | ||||||

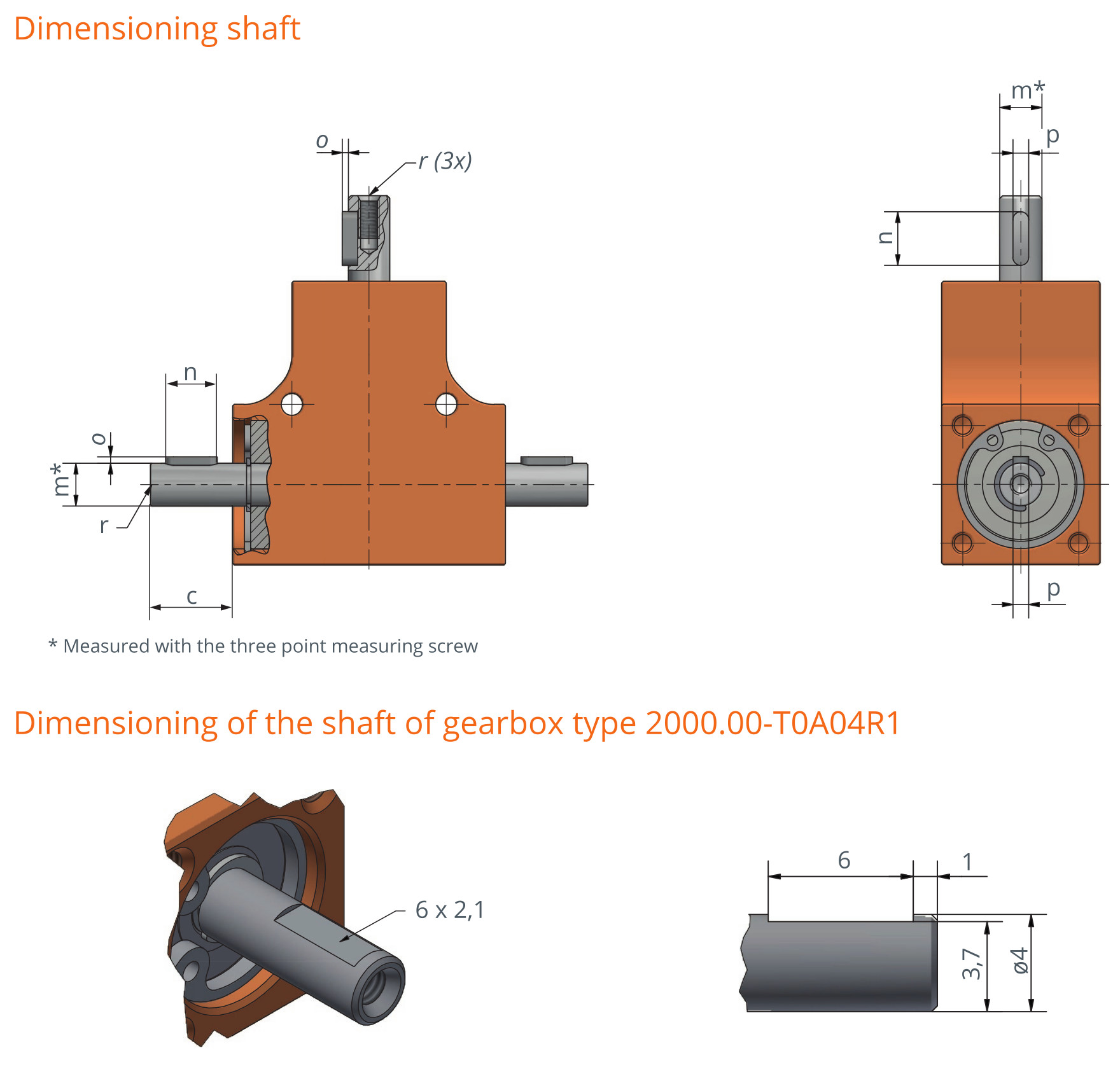

| Gearboxtype | ø Shaft | Shaft length | Dimension feathery | Threaded hole inside | Item- Nr. | ||
| m* | c | n | o | p | r | ||
| 2000 | ø4j5 | 10 | - | - | - | M2,5x5 | 2000.00-T0A04R1 |
| 2001 | ø6j6 | 12 | 8 | 0.8 | 2 | M3x8 | 2001.00-T0A06R1 |
| 2002 | ø6j6 |
12 | 8 | 0.8 | 2 | M3x6 | 2002.00-T0A06R1 |
| 2003 | ø8j6 ø10j6 |
16 | 10 | 0.8 | 3 |
M4x8 | 2003.00-T0A08R1 |
| 2004 | ø8j6 | 16 |
10 | 1.2 | 3 | M4x8 | 2004.00-T0A08R1 |
| 2005 | ø8j6 |
16 | 10 | 1.2 |
3 | M4x8 |
2005.00-T0A08R1 |
| 2006 | ø10j6 | 16 | 10 | 1.2 | 3 | M4x8 | 2006.00-T0A10R1 2006.00-T0B10R1 |
| 2007 | ø12j6 | 16 | 12 | 1.5 | 4 | M5x8 | 2007.00-T0A12R1 2007.00-T0B12R1 |
| 2008 | ø12j6 | 16 | 12 | 1.5 | 4 | M5x8 | 2008.00-T0A12R1 2008.00-T0B12R1 |
| 2009 | ø12j6 | 16 | 12 | 1.5 | 4 | M5x8 | 2009.00-T0A12R1 2008.00-T0B12R1 |
3D data (in STEP format) is saved as a zip file on your computer. After unpacking the files, you can open and view the data with an STP viewer (e.g. the free Autodesk Viewer). To download our 3D data, you have to log into your customer account. If you do not yet have a customer account, you can register now.
