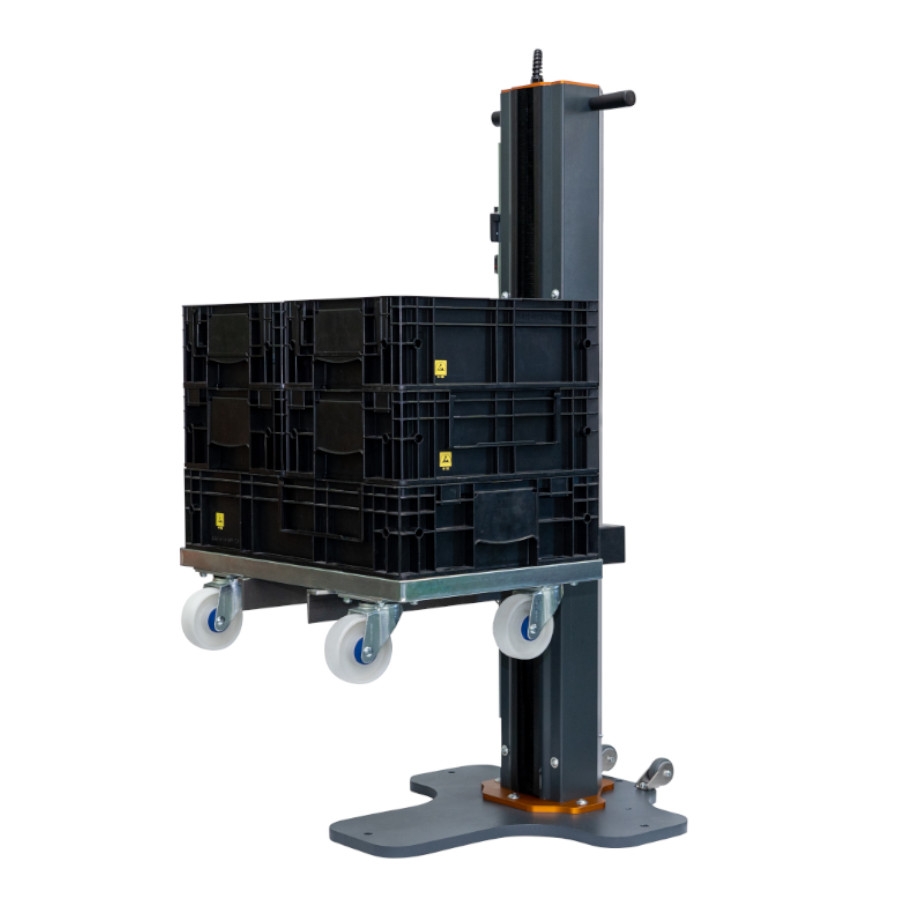

KET-LIFT4BOX – Lift smart, work smart
Our new electric lifter KET-LIFT4BOX is a compact, powerful and easy-to-use solution for efficient lifting of boxes and crates in warehouses, workshops and production facilities.
KET-LIFT4BOX is suitable for heavy loads in demanding environments. Thanks to its automatic, electric lifting function, it contributes to employee relief and shortened reach distances. This makes it the optimal assistant for improved material supply and a healthier, more productive working environment.
- Suitable for front loading up to 200 kg
- Ergonomic working thanks to stepless electrical container positioning manually via buttons on the column or automatic operation with light barriers
- Working height adjustable
- High stability thanks to solid base plate, which can be fixed to the ground via holes if required
- Transport rollers and safe handles for mobile use
In automatic mode, KET-LIFT4BOX takes over the lifting and lowering of loads fully automatically, making everyday work easier. The working position can be adjusted effortlessly and without tools using light barriers. As soon as a box is removed from the stack, the KET- LIFT4BOX skillfully raises the next box exactly to the previous level, ensuring a continuous working surface. On the other hand, when a crate is added to the stack, the KET-LIFT4BOX lowers it precisely to the previously set level, enabling optimized material provision.
|Version||KET-LIFT4BOX Quick||200 kg|
|KET-LIFT4BOX Strong||100 kg||200 kg|
|Adjustment speed||20 mm/s||10 mm/s|
|Dimensions (W x D x H)||560 x 640 x 1,125 mm|
|Working height (fork)||100 to 925 mm, other heights available upon request|
|Total adjustment distance||825 mm|
|Own weight||approx. 55 kg|
|Operation||via push button on the column or in automatic mode|
3D data (in STEP format) is saved as a zip file on your computer. After unpacking the files, you can open and view the data with an STP viewer (e.g. the free Autodesk Viewer). To download our 3D data, you have to log into your customer account. If you do not yet have a customer account, you can register now.
