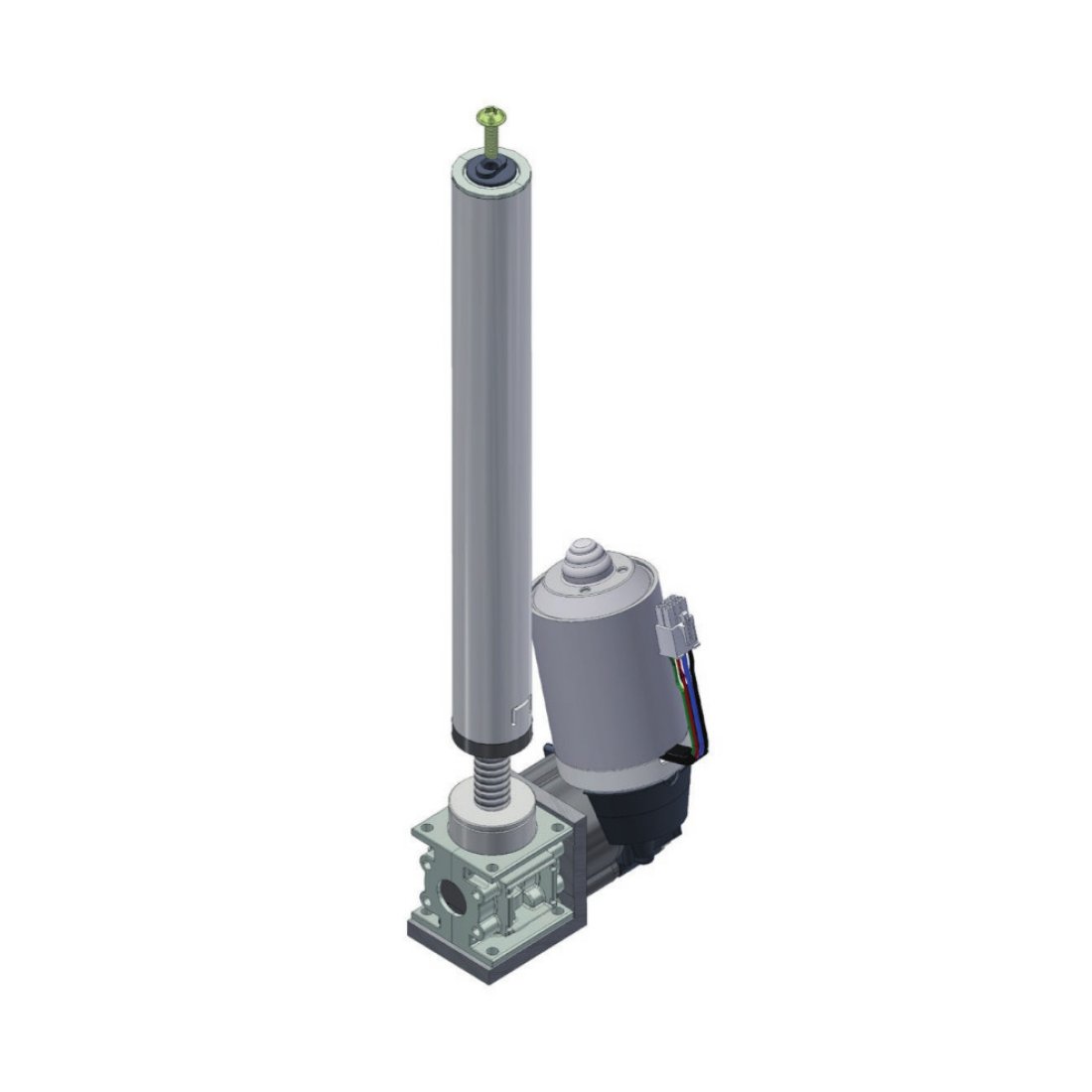

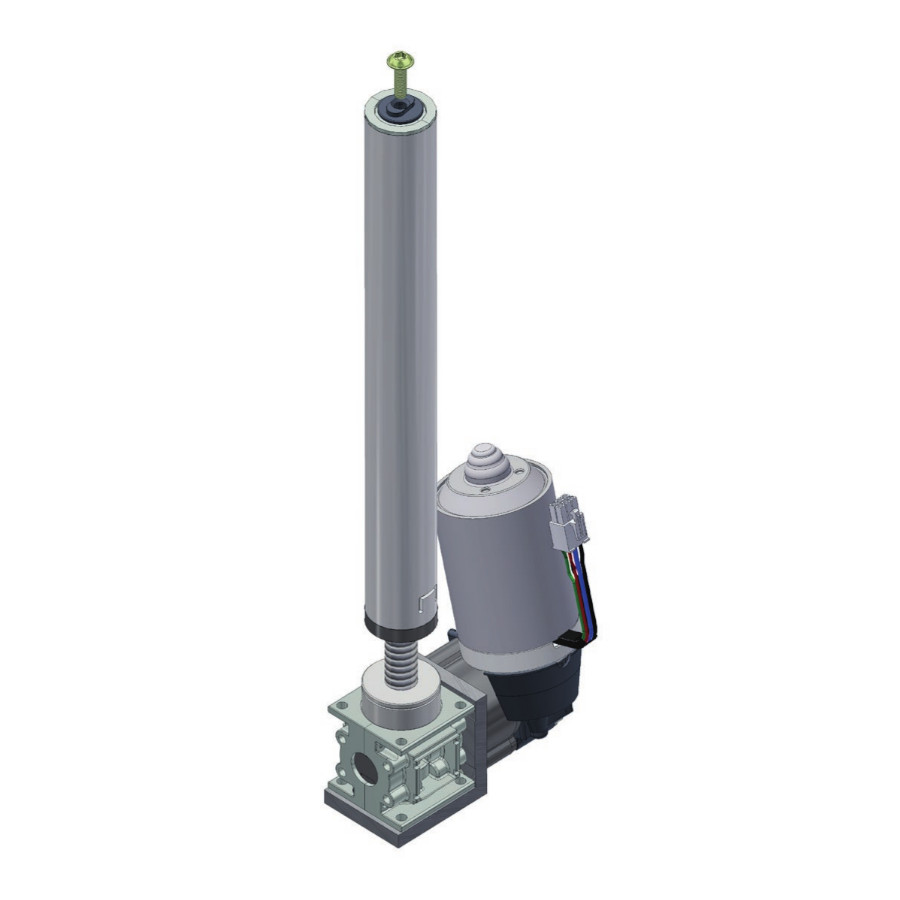

Inline spindle drive 4645 Heavy load

Description

A powerful spindle drive that enables stepless stroke adjustment of heavy loads up to 220 kg with an outstanding travel speed of up to 25 mm/s. Thanks to its slim design, the drive can be seamlessly integrated into guideways.

Special features

• Outstanding load - travel speed characteristics

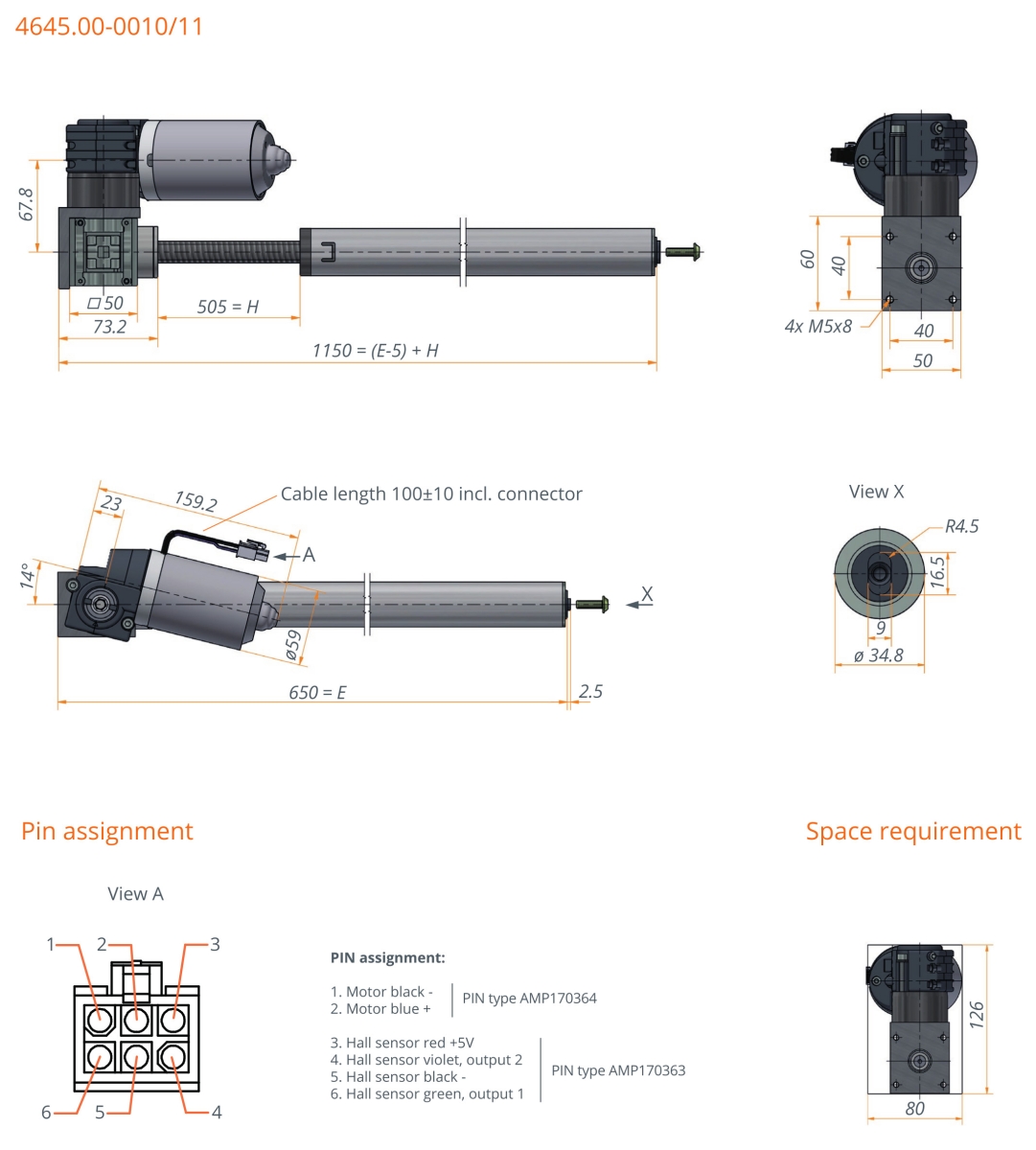

• Installation space requirement 80 mm x 126 mm
• Integrated stroke measuring system
• With pendulum mount (also available without, on request)
• For loads > 150 kg with thrust bearing
• Max. stroke 500 mm
• Stroke and installation dimensions can be adapted to customer specifications
• Customized connection possible on the gearbox side

Technical notes

• The operating range of the drive (rated torque) is determined for the service life of 10,000 double strokes in table applications
• The holding torque of the drive can be significantly increased by using a control unit with a short-circuit brake
• The control unit (in combination with LogicData Compact-3 control unit) regulates the system in such a way that the speed is kept as constant as possible over the entire operating range of the drive
