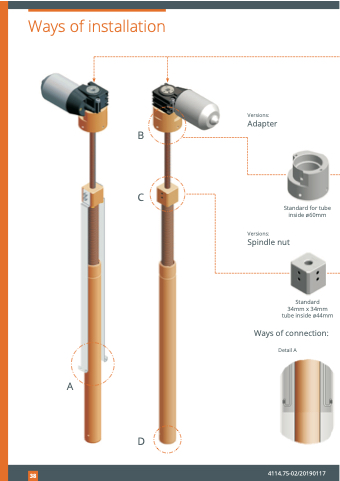

Ways of installation
Versions: Adapter
B
C
Standard for tube inside ø60mm
Versions: Spindle nut
Standard 34mm x 34mm tube inside ø44mm
Ways of connection: Detail A
A
D
