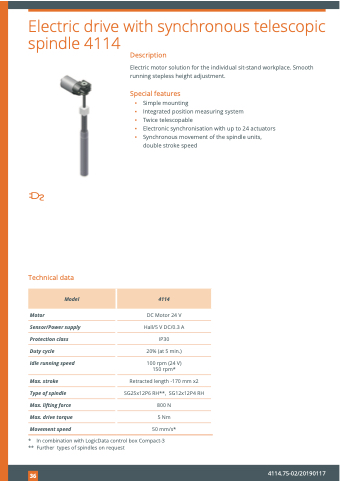

Page 36 - Ketterer – Brochure Motor Drives and Spindle Drives

Electric drive with synchronous telescopic
spindle 4114
Description
Electric motor solution for the individual sit-stand workplace. Smooth running stepless height adjustment.
Special features
Technical data
Motor
Sensor/Power supply Protection class Duty cycle
Idle running speed
Max. stroke
Type of spindle Max. lifting force Max. drive torque Movement speed
DC Motor 24 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
▪ ▪ ▪ ▪ ▪
Simple mounting
Integrated position measuring system
Twice telescopable
Electronic synchronisation with up to 24 actuators Synchronous movement of the spindle units, double stroke speed
Model
4114
100 rpm (24 V) 150 rpm*
Retracted length -170 mm x2 SG25x12P6 RH**, SG12x12P4 RH 800 N
5 Nm
50 mm/s*
* In combination with LogicData control box Compact-3 ** Further types of spindles on request
316
4114.75-02/20190117
