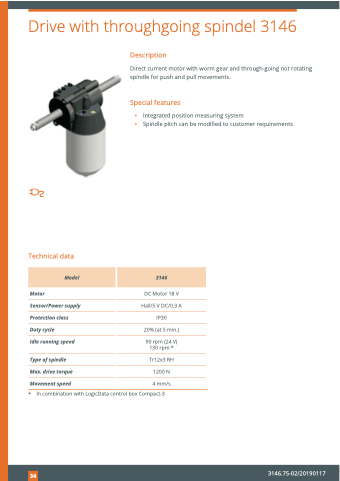

Drive with throughgoing spindel 3146
Technical data
Motor
Sensor/Power supply Protection class Duty cycle
Idle running speed
Type of spindle
Max. drive torque
Movement speed
DC Motor 18 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
Tr12x3 RH 1200 N 4 mm/s
Description
Direct current motor with worm gear and through-going not rotating spindle for push and pull movements.
Special features
▪ ▪
Integrated position measuring system
Spindle pitch can be modified to customer requirements
Model
3146
* In combination with LogicData control box Compact-3
90 rpm (24 V) 130 rpm *
