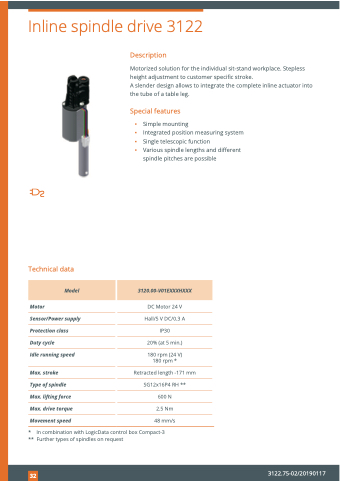

Inline spindle drive 3122
Technical data
Motor
Sensor/Power supply Protection class Duty cycle
Idle running speed
Max. stroke
Type of spindle Max. lifting force Max. drive torque Movement speed
DC Motor 24 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
Description
Motorized solution for the individual sit-stand workplace. Stepless height adjustment to customer specific stroke.
A slender design allows to integrate the complete inline actuator into the tube of a table leg.
Special features
▪ ▪ ▪ ▪
Simple mounting
Integrated position measuring system Single telescopic function
Various spindle lengths and different spindle pitches are possible
Model
3120.00-V01EXXXHXXX
180 rpm (24 V) 180 rpm *
Retracted length -171 mm SG12x16P4 RH ** 600 N
2.5 Nm
48 mm/s
* In combination with LogicData control box Compact-3 ** Further types of spindles on request
312
3122.75-02/20190117
