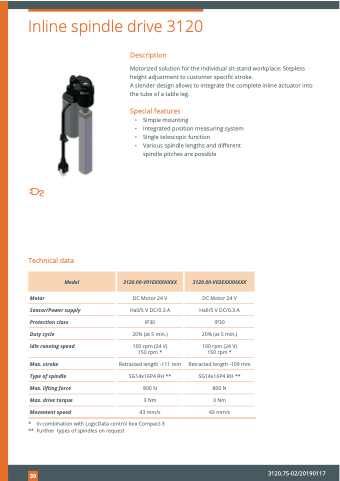

Inline spindle drive 3120
Description
Motorized solution for the individual sit-stand workplace. Stepless height adjustment to customer specific stroke.
A slender design allows to integrate the complete inline actuator into the tube of a table leg.
Special features
▪ Simple mounting
▪ Integrated position measuring system
▪ Single telescopic function
▪ Various spindle lengths and different
spindle pitches are possible
Technical data
Motor
Sensor/Power supply Protection class Duty cycle
Idle running speed
Max. stroke
Type of spindle Max. lifting force Max. drive torque Movement speed
DC Motor 24 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
Retracted length -111 mm SG14x16P4 RH ** 800 N
3 Nm
43 mm/s
DC Motor 24 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
Retracted length -109 mm SG14x16P4 RH ** 800 N
3 Nm
43 mm/s
Model
3120.00-V01EXXXHXXX
3120.00-V02EXXXHXXX
100 rpm (24 V) 150 rpm *
100 rpm (24 V) 150 rpm *
* In combination with LogicData control box Compact-3 ** Further types of spindles on request
310
3120.75-02/20190117
