Electric Motor Spindle Drives

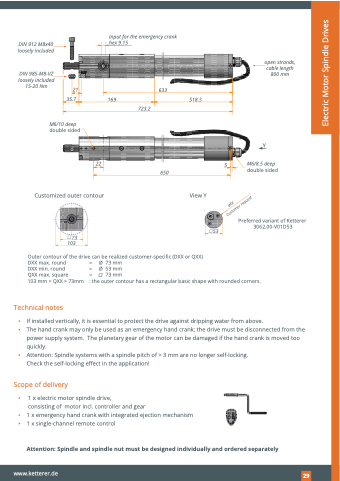

DIN 912 M8x40 loosely included
DIN 985-M8-VZ loosely included 15-20 Nm
Input for the emergency crank hex 9.15
M6/10 deep
double sided
21 35.7
633
open strands, cable length 800 mm
Y
M6/8.5 deep
double sided
Preferred variant of Ketterer 3062.00-V01D53
Customized outer contour
73
103
View Y
Y
53
DXX max. round
DXX min. round
QXX max. square
103 mm > QXX > 73mm
Technical notes
=
=
=
: the outer contour has a rectangular basic shape with rounded corners.
22
5
169
518.5
Outer contour of the drive can be realized customer-specific (DXX or QXX)
Ø 73 mm Ø 53 mm 73 mm
723.2
øXX
Customer request
▪ If installed vertically, it is essential to protect the drive against dripping water from above.
▪ The hand crank may only be used as an emergency hand crank; the drive must be disconnected from the
power supply system. The planetary gear of the motor can be damaged if the hand crank is moved too
quickly.
▪ Attention: Spindle systems with a spindle pitch of > 3 mm are no longer self-locking.
Check the self-locking effect in the application!
Scope of delivery
▪
▪ ▪
1 x electric motor spindle drive,
consisting of motor incl. controller and gear
1 x emergency hand crank with integrated ejection mechanism 1 x single-channel remote control
Attention: Spindle and spindle nut must be designed individually and ordered separately
