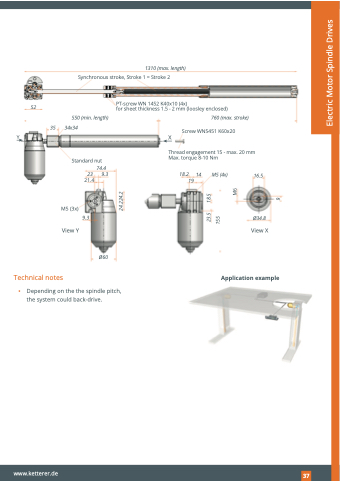

Page 37 - Ketterer – Brochure Motor Drives and Spindle Drives
P. 37
52
Y
PT-screw WN 1452 K40x10 (4x)
for sheet thickness 1.5 - 2 mm (loosley enclosed)
Technical notes
Application example
35
550 (min. length)
34x34
Standard nut
74.4 23 9.3
21.4
9.3
View Y
760 (max. stroke)
Screw WN5451 K60x20 X
Thread engagement 15 - max. 20 mm Max. torque 8-10 Nm
M5 (3x)
1310 (max. length)
Synchronous stroke, Stroke 1 = Stroke 2
Ø60
18.2 14 M5(4x) 19
16.5
Ø34.8
View X
▪ Depending on the the spindle pitch, the system could back-drive.
www.ketterer.de
327
24.224.2
23.5 18.5 155
9
M6
Electric Motor Spindle Drives
