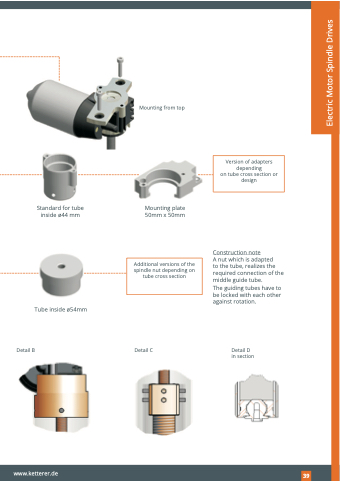

Mounting from top
Version of adapters depending
on tube cross section or design
Standard for tube inside ø44 mm
Tube inside ø54mm
Detail B
Mounting plate 50mm x 50mm
Additional versions of the spindle nut depending on tube cross section
Detail C
Construction note
A nut which is adapted
to the tube, realizes the required connection of the middle guide tube.
The guiding tubes have to be locked with each other against rotation.
Detail D in section
