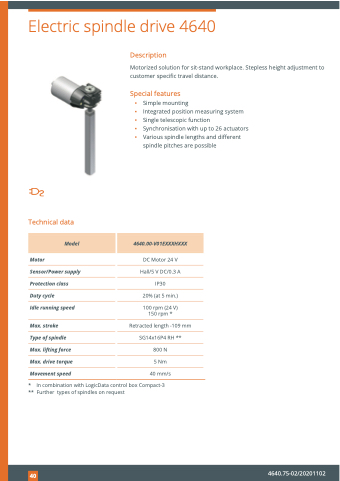

Electric spindle drive 4640
Technical data
Motor
Sensor/Power supply Protection class Duty cycle
Idle running speed
Max. stroke
Type of spindle Max. lifting force Max. drive torque Movement speed
DC Motor 24 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
Retracted length -109 mm SG14x16P4 RH ** 800 N
5 Nm
40 mm/s
Description
Motorized solution for sit-stand workplace. Stepless height adjustment to customer specific travel distance.
Special features
▪ Simple mounting
▪ Integrated position measuring system
▪ Single telescopic function
▪ Synchronisation with up to 26 actuators
▪ Various spindle lengths and different
spindle pitches are possible
Model
4640.00-V01EXXXHXXX
* In combination with LogicData control box Compact-3 ** Further types of spindles on request
100 rpm (24 V) 150 rpm *
410
