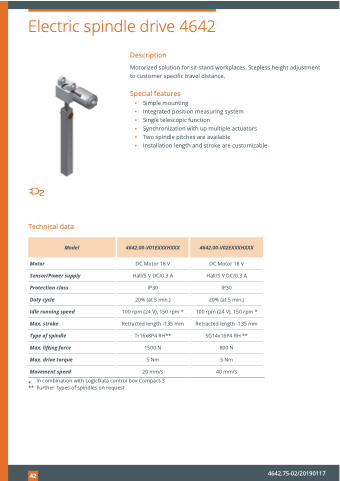

Electric spindle drive 4642
Description
Motorized solution for sit-stand workplaces. Stepless height adjustment to customer specific travel distance.
Special features
▪ Simple mounting
▪ Integrated position measuring system
▪ Single telescopic function
▪ Synchronization with up multiple actuators
▪ Two spindle pitches are available
▪ Installation length and stroke are customizable
Technical data
Motor
Sensor/Power supply
Protection class
Duty cycle
Idle running speed
Max. stroke
Type of spindle
Max. lifting force
Max. drive torque
Movement speed
DC Motor 18 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
100 rpm (24 V), 150 rpm * Retracted length -135 mm Tr16x8P4 RH** 1500 N
5 Nm
20 mm/s
DC Motor 18 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.)
100 rpm (24 V), 150 rpm * Retracted length -135 mm SG14x16P4 RH ** 800 N
5 Nm
40 mm/s
Model
4642.00-V01EXXXHXXX
4642.00-V02EXXXHXXX
* In combination with LogicData control box Compact-3 ** Further types of spindles on request
412
4642.75-02/20190117
