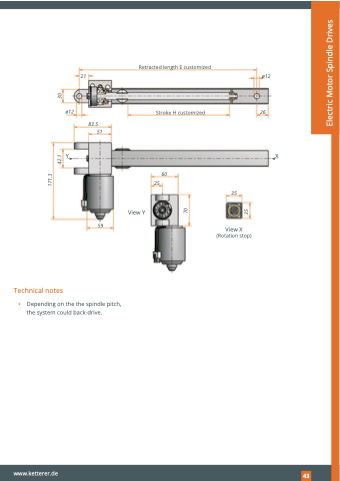

Technical notes
ø12
Stroke H customized 26
21
ø12
83.5 51
Retracted length E customized
YX
▪ Depending on the the spindle pitch, the system could back-drive.
59
View Y
35
View X (Rotation stop)
60 25
