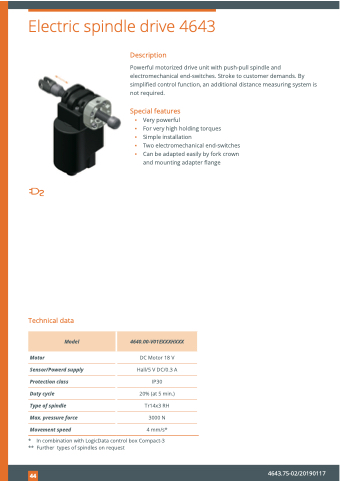

Electric spindle drive 4643
Description
Powerful motorized drive unit with push-pull spindle and electromechanical end-switches. Stroke to customer demands. By simplified control function, an additional distance measuring system is not required.
Special features
▪ Very powerful
▪ For very high holding torques
▪ Simple installation
▪ Two electromechanical end-switches
▪ Can be adapted easily by fork crown
and mounting adapter flange
Technical data
Motor
Sensor/Powerd supply Protection class
Duty cycle
Type of spindle
Max. pressure force Movement speed
DC Motor 18 V Hall/5 V DC/0.3 A IP30
20% (at 5 min.) Tr14x3 RH 3000 N
4 mm/s*
Model
4640.00-V01EXXXHXXX
* In combination with LogicData control box Compact-3 ** Further types of spindles on request
414
4643.75-02/20190117
