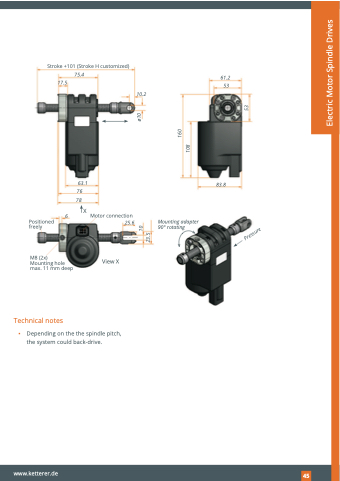

Positioned freely
M8 (2x)
25.6
Mounting adapter 90° rotating
Mounting hole max. 11 mm deep
Technical notes
View X
Stroke +101 (Stroke H customized)
75.4 17.5
61.2 53
6
Motor connection
▪ Depending on the the spindle pitch, the system could back-drive.
63.1 76
78
X
83.8
10.2
