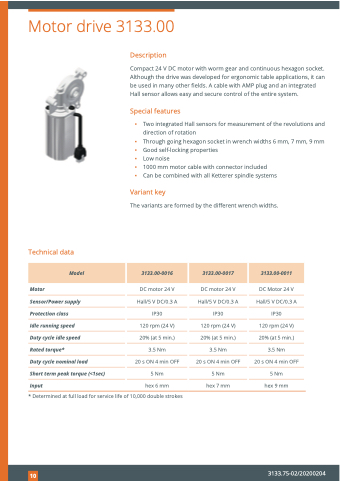

Motor drive 3133.00
Description
Compact 24 V DC motor with worm gear and continuous hexagon socket. Although the drive was developed for ergonomic table applications, it can be used in many other fields. A cable with AMP plug and an integrated Hall sensor allows easy and secure control of the entire system.
Special features
▪ Two integrated Hall sensors for measurement of the revolutions and direction of rotation
▪ Through going hexagon socket in wrench widths 6 mm, 7 mm, 9 mm
▪ Good self-locking properties
▪ Low noise
▪ 1000 mm motor cable with connector included
▪ Can be combined with all Ketterer spindle systems
Variant key
The variants are formed by the different wrench widths.
Technical data
Motor
Sensor/Power supply Protection class
Idle running speed
Duty cycle idle speed
Rated torque*
Duty cycle nominal load
Short term peak torque (<1sec) Input
DC motor 24 V Hall/5 V DC/0.3 A IP30
120 rpm (24 V) 20% (at 5 min.) 3.5 Nm
20 s ON 4 min OFF 5 Nm
hex 6 mm
DC motor 24 V Hall/5 V DC/0.3 A IP30
120 rpm (24 V) 20% (at 5 min.) 3.5 Nm
20 s ON 4 min OFF 5 Nm
hex 7 mm
DC Motor 24 V Hall/5 V DC/0.3 A IP30
120 rpm (24 V) 20% (at 5 min.) 3.5 Nm
20 s ON 4 min OFF 5 Nm
hex 9 mm
Model
3133.00-0016
3133.00-0017
3133.00-0011
* Determined at full load for service life of 10,000 double strokes
