Page 14 - Ketterer – Borchure Lifting Systems
P. 14

  134
3053.75-02/20200319

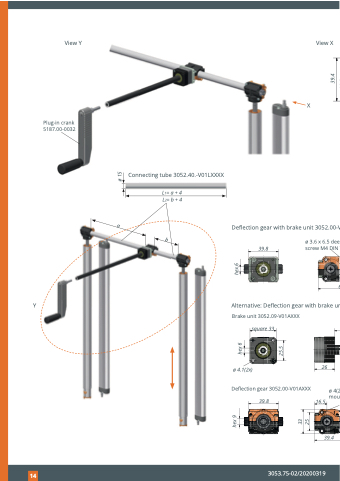

   View Y
View X
    Plug-in crank 5187.00-0032
X
 Connecting tube 3052.40.-V01LXXXX
L1= a + 4 L2= b + 4
     Deflection gear with brake unit 3052.00-V ø 3.6 x 6.5 dee
   39.8
screw M4 DIN
6
                                                        Y
Alternative: Deflection gear with brake un
Brake unit 3052.09-V01AXXX
square 33
ø 4.1(2x)
26
ø 4(2 mou
                                                                  Deflection gear 3052.00-V01AXXX
39.8 16.5
                                                                                                                               39.4
  ab
hex 9
hex 6
33 25
hex 6
25.5
ø 15
39.4
