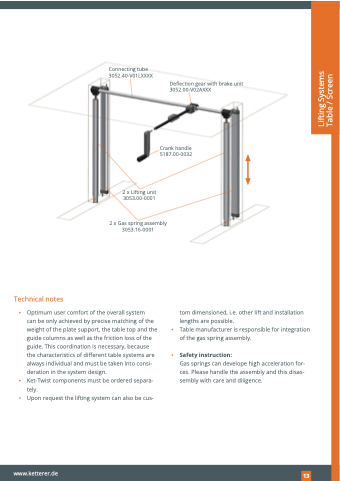

Page 13 - Ketterer Drives – Brochure Lifting Systems and Accessories
P. 13

  Connecting tube 3052.40-V01LXXXX
Deflection gear with brake unit 3052.00-V02AXXX
Crank handle 5187.00-0032
   Technical notes
▪ Optimum user comfort of the overall system
can be only achieved by precise matching of the weight of the plate support, the table top and the guide columns as well as the friction loss of the guide. This coordination is necessary, because the characteristics of different table systems are always individual and must be taken into consi- deration in the system design.
▪ Ket-Twist components must be ordered separa- tely.
▪ Upon request the lifting system can also be cus-
tom dimensioned, i.e. other lift and installation
lengths are possible.
▪ Table manufacturer is responsible for integration
of the gas spring assembly.
▪ Safety instruction:
Gas springs can develope high acceleration for- ces. Please handle the assembly and this disas- sembly with care and diligence.
2 x Lifting unit 3053.00-0001
2 x Gas spring assembly 3053.16-0001
