P. 38

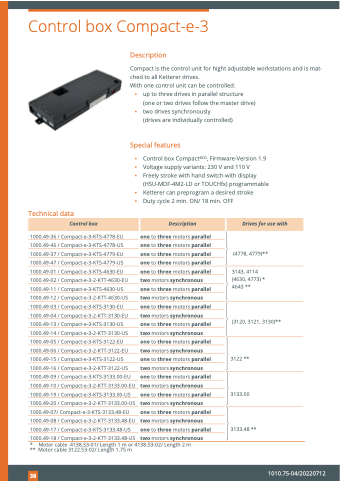

 Control box Compact-e-3
Technical data
1000.49-36 / Compact-e-3-KTS-4778-EU 1000.49-46 / Compact-e-3-KTS-4778-US 1000.49-37 / Compact-e-3-KTS-4779-EU 1000.49-47 / Compact-e-3-KTS-4779-US 1000.49-01 / Compact-e-3-KTS-4630-EU 1000.49-02 / Compact-e-3-2-KTT-4630-EU 1000.49-11 / Compact-e-3-KTS-4630-US 1000.49-12 / Compact-e-3-2-KTT-4630-US 1000.49-03 / Compact-e-3-KTS-3130-EU 1000.49-04 / Compact-e-3-2-KTT-3130-EU 1000.49-13 / Compact-e-3-KTS-3130-US 1000.49-14 / Compact-e-3-2-KTT-3130-US 1000.49-05 / Compact-e-3-KTS-3122-EU 1000.49-06 / Compact-e-3-2-KTT-3122-EU 1000.49-15 / Compact-e-3-KTS-3122-US 1000.49-16 / Compact-e-3-2-KTT-3122-US 1000.49-09 / Compact-e-3-KTS-3133.00-EU 1000.49-10 / Compact-e-3-2-KTT-3133.00-EU 1000.49-19 / Compact-e-3-KTS-3133.00-US 1000.49-20 / Compact-e-3-2-KTT-3133.00-US 1000.49-07/ Compact-e-3-KTS-3133.48-EU 1000.49-08 / Compact-e-3-2-KTT-3133.48-EU 1000.49-17 / Compact-e-3-KTS-3133.48-US 1000.49-18 / Compact-e-3-2-KTT-3133.48-US
one to three motors parallel one to three motors parallel one to three motors parallel one to three motors parallel one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous one to three motors parallel two motors synchronous
(4778, 4779)**
3143, 4114 (4630, 4773) * 4643 **
(3120, 3121, 3130)**
3122 **
3133.00
3133.48 **
Description
Compact is the control unit for hight adjustable workstations and is mat- ched to all Ketterer drives.
With one control unit can be controlled:
▪ up to three drives in parallel structure (one or two drives follow the master drive)
▪ two drives synchronously
(drives are individually controlled)
Special features
 ▪ ▪ ▪
▪ ▪
Control box Compacteco, Firmware-Version 1.9 Voltage supply variants: 230 V and 110 V
Freely stroke with hand switch with display (HSU-MDF-4M2-LD or TOUCHfx) programmable Ketterer can preprogram a desired stroke
Duty cycle 2 min. ON/ 18 min. OFF
 Control box
Description
Drives for use with
                                                     * Motor cable 4138.53-01/ Length 1 m or 4138.53-02/ Length 2 m ** Motor cable 3122.53-02/ Length 1.75 m
 318
1010.75-04/20220712
