Page 27 - Ketterer – Borchure Lifting Systems
P. 27

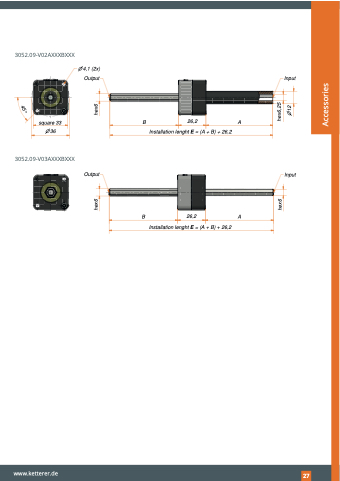

 3052.09-V02AXXXBXXX
square 33
3052.09-V03AXXXBXXX
 4,1 (2x) Output
Input
                                                                                                                                                                                               B
26,2
Installation lenght E = (A + B) + 26,2
A
    36
       Output
Input
                                                                                                                                                                   B 26,2 A
Installation lenght E = (A + B) + 26,2
    www.ketterer.de
27
   45°
hex6 hex6
hex6
hex6,25 12
