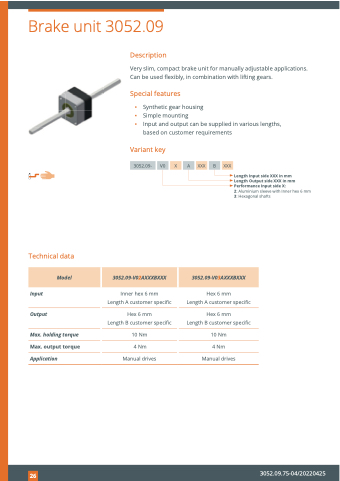

 Brake unit 3052.09
Description
Very slim, compact brake unit for manually adjustable applications. Can be used flexibly, in combination with lifting gears.
Special features
▪ Synthetic gear housing
▪ Simple mounting
▪ Input and output can be supplied in various lengths,
             based on customer requirements
  Variant key
 3052.09-
V XX
A XXX
B XXX
  Technical data
Input
Output
Max. holding torque
Max. output torque
Application
Inner hex 6 mm Length A customer specific
Hex 6 mm
Length B customer specific
10 Nm
4 Nm Manual drives
Hex 6 mm
Length A customer specific
Hex 6 mm
Length B customer specific
10 Nm
4 Nm Manual drives
Length Input side XXX in mm
Length Output side XXX in mm Performance Input side XX:
02 Aluminium sleeve with Inner hex 6 mm 03 Hexagonal shafts
 Model
3052.09-V02AXXXBXXX
3052.09-V03AXXXBXXX
