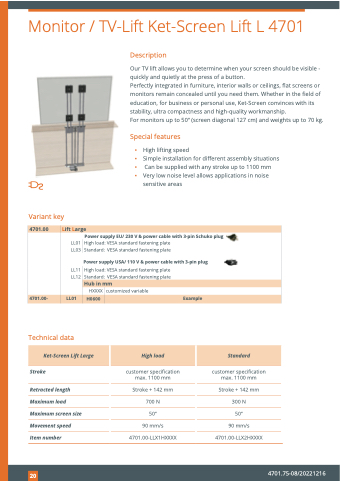

Monitor / TV-Lift Ket-Screen Lift L 4701
Variant key
Description
Our TV lift allows you to determine when your screen should be visible - quickly and quietly at the press of a button.
Perfectly integrated in furniture, interior walls or ceilings, flat screens or monitors remain concealed until you need them. Whether in the field of education, for business or personal use, Ket-Screen convinces with its stability, ultra compactness and high-quality workmanship.
For monitors up to 50‘‘ (screen diagonal 127 cm) and weights up to 70 kg.
Special features
▪ High lifting speed
▪ Simple installation for different assembly situations
▪ Can be supplied with any stroke up to 1100 mm
▪ Very low noise level allows applications in noise
sensitive areas
Power supply EU/ 230 V & power cable with 3-pin Schuko plug
4701.00
Lift Large
LL01 High load: VESA standard fastening plate LL03 Standard: VESA standard fastening plate
Power supply USA/ 110 V & power cable with 3-pin plug
LL11 High load: VESA standard fastening plate LL12 Standard: VESA standard fastening plate
Hub in mm
HXXXX
customized variable
4701.00-
LL01
H0600
Example
Technical data
Stroke
Retracted length Maximum load Maximum screen size Movement speed Item number
customer specification max. 1100 mm
Stroke + 142 mm 700 N
50“
90 mm/s 4701.00-LLX1HXXXX
customer specification max. 1100 mm
Stroke + 142 mm 300 N
50“
90 mm/s 4701.00-LLX2HXXXX
Ket-Screen Lift Large
High load
Standard
210
