Angular gear Ket-Bee 200X
Description
Ket-Bee is a bevel gearbox family consisting of 7 sizes for versatile use as an angular gearbox. The angular gearbox is characterised by a compact design with maximum torque, sturdiness and smooth power transmission. The uncomplicated mounting of the angular gear is made possible by a simple screw fixing.
Special features
- Maintenance-free
- Steel bevel wheels, case-hardened
- Aluminium housing, anodized (orange or silver)
- Silent running
- Ratio 1:1
- Permitted operating temp. -20°C to +60°C
- Backlash at drive shaft 3° ± 1°
- Duty cycle 20 % at 5 min (1 min ON, 4 min OFF)
- Lifetime of 1000 hours with: - full load and
- input speed of 500 rpm and
- duty cycle 20% with 5 min
| Type | Speed n in rpm | Max. torque M in Nm | Radial and axial load FR in N FN in N | Part weight in kg | Item.-Nr. | |
| Type A | 100/500/1000 | 0.35/0.1/0.05 | 60 | 60 | 0.052 | 2001.00-0001 |
| Type B | 100/500/1000 | 0.75/0.3/0.15 | 100 | 100 | 0.073 | 2002.00-0001 |
| Type C | 100/500/1000 | 2.5/1.0/0.5 | 120 | 120 | 0.142 | 2003.00-0001 |
| Type D | 100/500/1000 | 4.0/1.5/0.75 | 140 | 140 | 0.189 | 2004.00-0001 |
| Type E | 100/500/1000 | 5.0/2.0/1.0 | 240 | 240 | 0.268 | 2005.00-0001 |
| Type F | 100/500/1000 | 8.0/3.0/1.5 | 550 | 550 | 0.330 | 2006.00-0001 |
| Type G | 100/500/1000 | 10.0/4.0/2.0 | 550 | 550 | 0.395 | 2007.00-0001 |

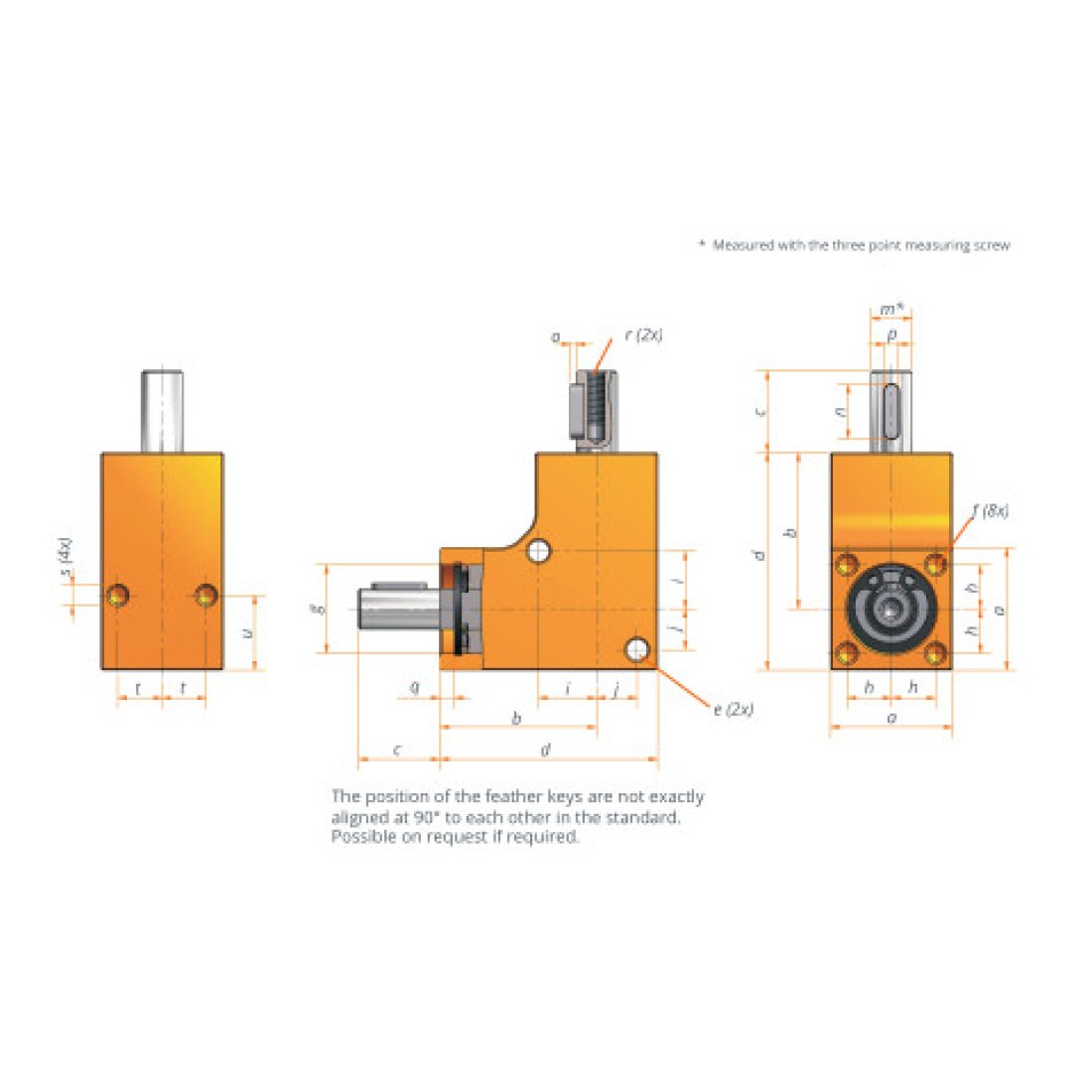

| Type | Dimensions in mm | ||||||||||||||||||
| a | b | c | d | e | f | g | h | i | j | m | n | o | p | q | r | s | t | u | |
| A | 18 | 23 | 12 | 32 | ø3.1 | M3x10 | 13 | 6.5 | 8.5 | 6 | ø6j6 | 8 | 0.8 | 2 | 2.1 | M3x8 | M3x6 | 6.5 | 11 |
| B | 20 | 25 | 12 | 35 | ø3.1 | M3x10 | 16 | 7.5 | 10 | 7 | ø8j6 | 8 | 0.8 | 2 | 2.05 | M3x8 | M3x6 | 7.5 | 10 |
| C | 24 | 30 | 16 | 42 | ø4.1 | M4x10 | 19 | 9 | 12 | 8 | ø10j6 | 12 | 1.5 | 4 | 2 | M4x8 | M4x8 | 9 | 16 |
| D | 26 | 33 | 16 | 46 | ø4.1 | M4x10 | 21 | 10 | 13 | 9 | ø12j6 | 12 | 1.5 | 4 | 2 | M5x8 | M4x8 | 10 | 16 |
| E | 30 | 38 | 16 | 53 | ø4.1 | M4x10 | 24 | 11 | 15 | 11 | ø12j6 | 12 | 1.5 | 4 | 2.1 | M5x8 | M4x8 | 11 | 16 |
| F | 32 | 40 | 16 | 56 | ø4.1 | M4x10 | 28 | 12 | 17 | 12 | ø12j6 | 12 | 1.5 | 4 | 2.1 | M5x8 | M4x8 | 12 | 16 |
| G | 35 | 42,5 | 16 | 60 | ø4.1 | M4x10 | 30 | 13 | 17.5 | 13.5 | ø12j6 | 12 | 1.5 | 4 | 2.1 | M5x8 | M4x8 | 13 | 16 |
3D data (in STEP format) is saved as a zip file on your computer. After unpacking the files, you can open and view the data with an STP viewer (e.g. the free Autodesk Viewer). To download our 3D data, you have to log into your customer account. If you do not yet have a customer account, you can register now.
