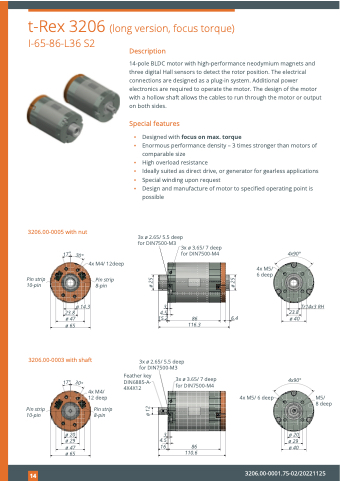

t-Rex 3206 (long version, focus torque)
I-65-86-L36 S2
Description
14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. The design of the motor with a hollow shaft allows the cables to run through the motor or output on both sides.
Special features
▪ Designed with focus on max. torque
▪ Enormous performance density – 3 times stronger than motors of
comparable size
▪ High overload resistance
▪ Ideally suited as direct drive, or generator for gearless applications
▪ Special winding upon request
▪ Design and manufacture of motor to specified operating point is
3206.00-0005 with nut
possible
3x ø 2.65/ 5.5 deep
for DIN7500-M3
3x ø 3.65/ 7 deep for DIN7500-M4
52 52
øø
Pin strip 10-pin
4x M4/ 12deep
Pin strip 8-pin
4x M5/
6 deep
3206.00-0003 with shaft
Pin strip 10-pin
17
° 3
0°
ø 20 ø 29 ø 47 ø 65
4x M4/ 12 deep
Pin strip 8-pin
Feather key DIN6885-A- 4X4X12
21
ø
3x ø 3.65/ 7 deep for DIN7500-M4
16 86 110.6
4x M5/ 6 deep M5/
8 deep
ø 20 ø 29 ø 40
14
3206.00-0001.75-02/20221125
17° 30°
4x90°
Tr14x3 RH 23.8
ø 40
4x90°
23.8 ø 47 ø 65
6.4
ø 14.3
3 4.5
15.2 86 116.3
3x ø 2.65/ 5.5 deep for DIN7500-M3
3 4.5
