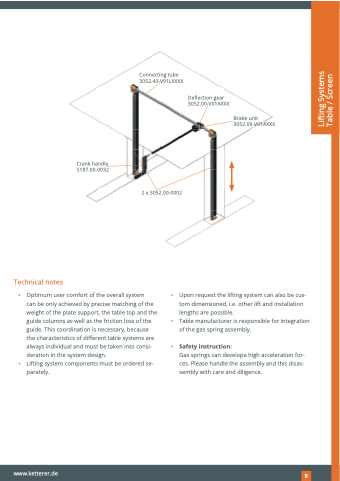

                       Connecting tube 3052.40-V01LXXXX
2 x 3052.00-0002
Deflection gear 3052.00-V01AXXX
                      Brake unit 3052.09-V01AXXX
                       Crank handle 5187.00-0032
                                              Technical notes
▪ Optimum user comfort of the overall system
can be only achieved by precise matching of the weight of the plate support, the table top and the guide columns as well as the friction loss of the guide. This coordination is necessary, because the characteristics of different table systems are always individual and must be taken into consi- deration in the system design.
▪ Lifting system components must be ordered se- parately.
▪ Upon request the lifting system can also be cus- tom dimensioned, i.e. other lift and installation lengths are possible.
▪ Table manufacturer is responsible for integration of the gas spring assembly.
▪ Safety instruction:
Gas springs can develope high acceleration for- ces. Please handle the assembly and this disas- sembly with care and diligence.
