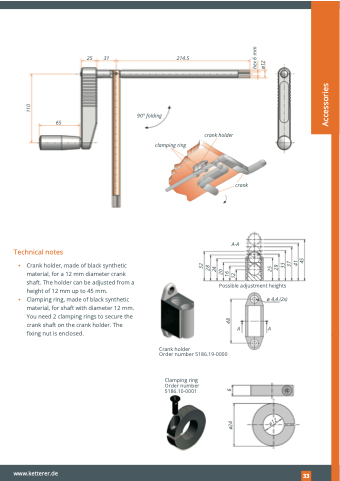

P. 33

 65
25 31
214.5
  90° folding
  clamping ring
crank holder
crank
A-A
Possible adjustment heights
ø 4,4 (2x)
AA
 Technical notes
▪ Crank holder, made of black synthetic material, for a 12 mm diameter crank shaft. The holder can be adjusted from a height of 12 mm up to 45 mm.
▪ Clamping ring, made of black synthetic material, for shaft with diameter 12 mm. You need 2 clamping rings to secure the crank shaft on the crank holder. The fixing nut is enclosed.
 Crank holder
Order number 5186.19-0000
Clamping ring Order number 5186.10-0001
   www.ketterer.de
323
    ø12
ø24
6
48
16 12
32 28
24 20
25 29
33 37
41 45
110
Accessories
hex 6 mm ø12
