P. 17

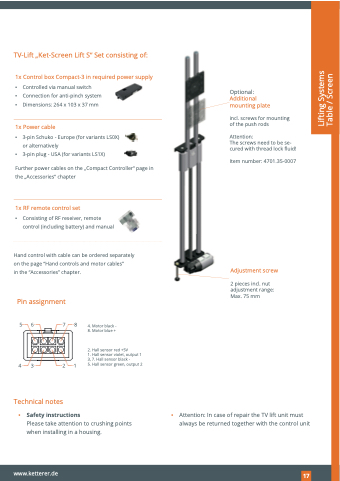

  TV-Lift „Ket-Screen Lift S“ Set consisting of:
1x Control box Compact-3 in required power supply
▪ Controlled via manual switch
▪ Connection for anti-pinch system
▪ Dimensions: 264 x 103 x 37 mm
1x Power cable
▪ 3-pin Schuko - Europe (for variants LS0X) or alternatively
▪ 3-pin plug - USA (for variants LS1X)
Further power cables on the „Compact Controller“ page in
the „Accessories“ chapter
1x RF remote control set
▪ Consisting of RF reseiver, remote control (including battery) and manual
Hand control with cable can be ordered separately on the page “Hand controls and motor cables”
in the “Accessories” chapter.
Additional mounting plate
incl. screws for mounting of the push rods
The screws need to be se- cured with thread lock fluid!
Item number: 4701.35-0007
          Pin assignment
56 78
43 21
Technical notes
Adjustment screw
2 pieces incl. nut adjustment range: Max. 75 mm
4. Motor black - 8. Motor blue +
2. Hall sensor red +5V
1. Hall sensor violet, output 1 3, 7. Hall sensor black -
5. Hall sensor green, output 2
          ▪ Safety instructions
Please take attention to crushing points when installing in a housing.
▪ Attention: In case of repair the TV lift unit must always be returned together with the control unit
  Lifting Systems Table / Screen
