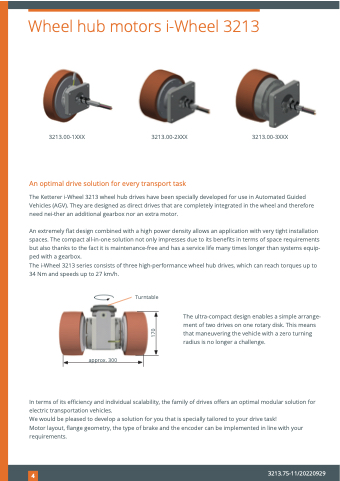

Wheel hub motors i-Wheel 3213
3213.00-1XXX 3213.00-2XXX 3213.00-3XXX
An optimal drive solution for every transport task
The Ketterer i-Wheel 3213 wheel hub drives have been specially developed for use in Automated Guided Vehicles (AGV). They are designed as direct drives that are completely integrated in the wheel and therefore need nei-ther an additional gearbox nor an extra motor.
An extremely flat design combined with a high power density allows an application with very tight installation spaces. The compact all-in-one solution not only impresses due to its benefits in terms of space requirements but also thanks to the fact it is maintenance-free and has a service life many times longer than systems equip- ped with a gearbox.
The i-Wheel 3213 series consists of three high-performance wheel hub drives, which can reach torques up to 34 Nm and speeds up to 27 km/h.
Turntable
The ultra-compact design enables a simple arrange- ment of two drives on one rotary disk. This means that maneuvering the vehicle with a zero turning radius is no longer a challenge.
approx. 300
In terms of its efficiency and individual scalability, the family of drives offers an optimal modular solution for electric transportation vehicles.
We would be pleased to develop a solution for you that is specially tailored to your drive task!
Motor layout, flange geometry, the type of brake and the encoder can be implemented in line with your requirements.
41
3213.75-11/20220929
170
